FAG T4DB170-R

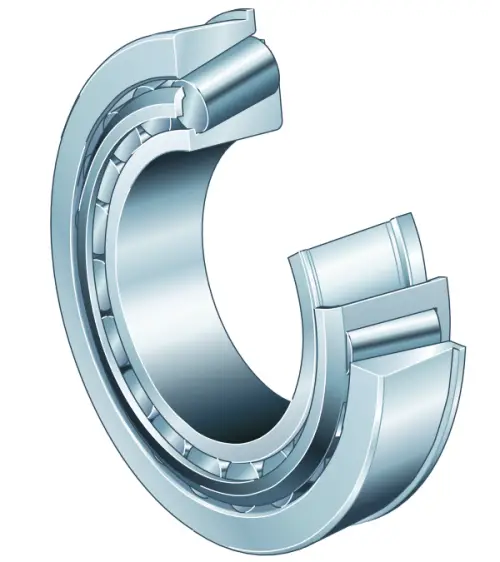

Tapered roller bearings with flange T, main dimensions to DIN ISO 355, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock

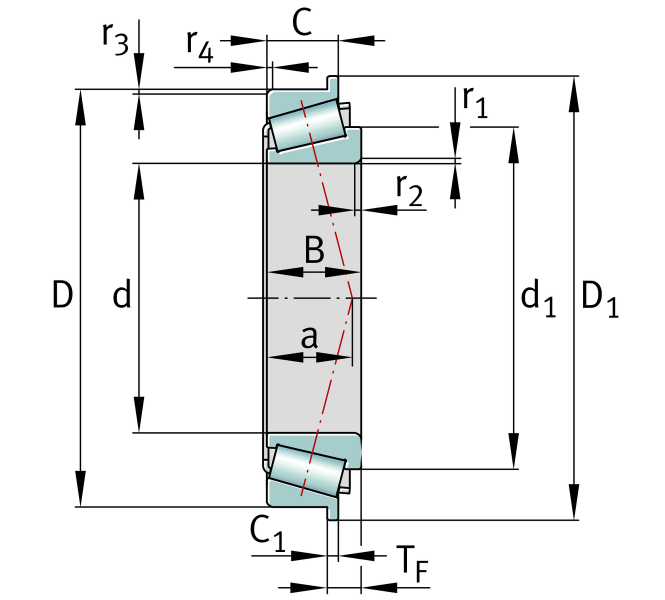

Main Dimensions & Performance Data
d
170 mm
Bore diameter
D
230 mm
Outside diameter
B
30 mm
Width, inner ring
C
23 mm
Width, outer ring
TF
15 mm
Width assembled flange bearing
Cr
228,000 N
Basic dynamic load rating, radial
C0r
390,000 N
Basic static load rating, radial
Cur
51,000 N
Fatigue load limit, radial
CG
2,950 1/min
Limiting speed
nϑr
1,790 1/min
Thermal speed rating
≈m
3.64 kg
Weight

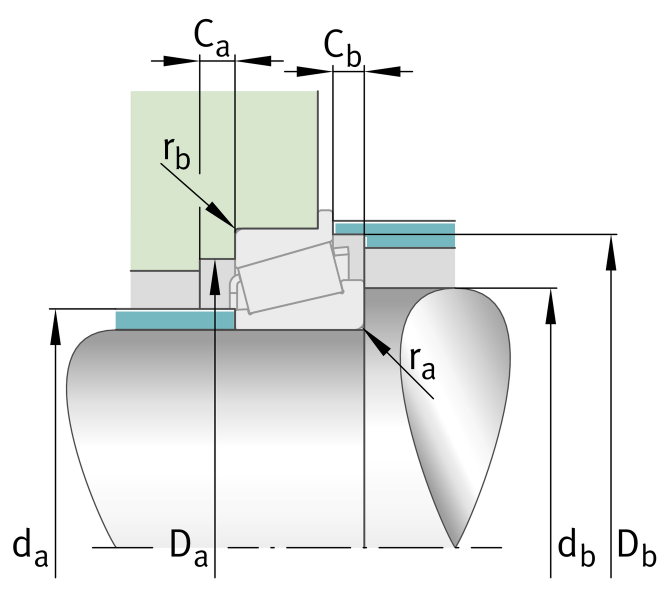

Mounting dimensions
da max
182.9 mm
Maximum diameter of shaft shoulder
db min
185 mm
Minimum diameter of shaft shoulder
Da min
214 mm
Minimum diameter of housing shoulder
Da max
216 mm
Maximum diameter of housing shoulder
Db min
223 mm
Minimum diameter of housing shoulder
Ca min
6 mm
Minimum axial space
Cb min
9 mm
Minimum axial space
ra max
3 mm
Maximum fillet radius of shaft
rb max
3 mm
Maximum fillet radius of housing
