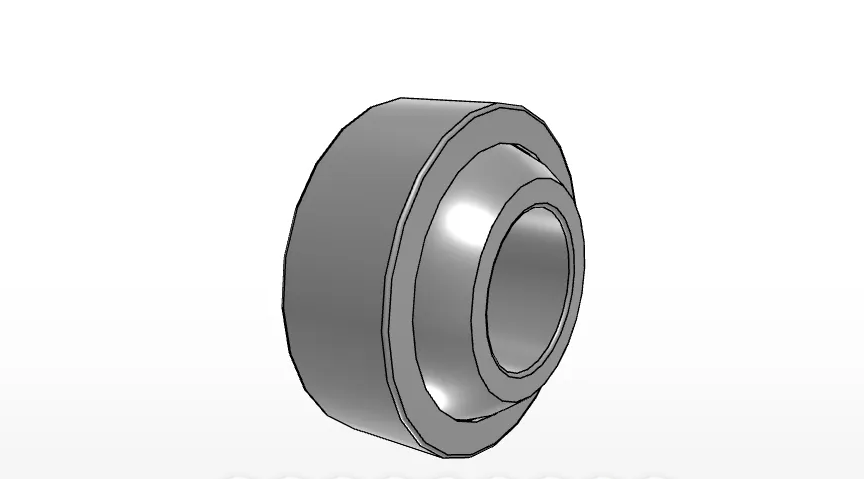

IKO GE120GS
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE120GS
Shaft Diameter
120
mm
Inside Diameter
120
mm
Outer Diameter
210
mm
Width of innerring
115
mm
Width
70
mm
Diameter
180.0
mm
rs min.
0.0
mm
rs min.
1.0
mm
rs min.
1.0
mm
Angle
16
degree
da min
125.5
mm
da max
138.5
mm
da max
204.5
mm
da min
176.0
mm
Dynamic load capacity
1240000
N
Static load capacity
7410000
N
Mass
15.50
kg
