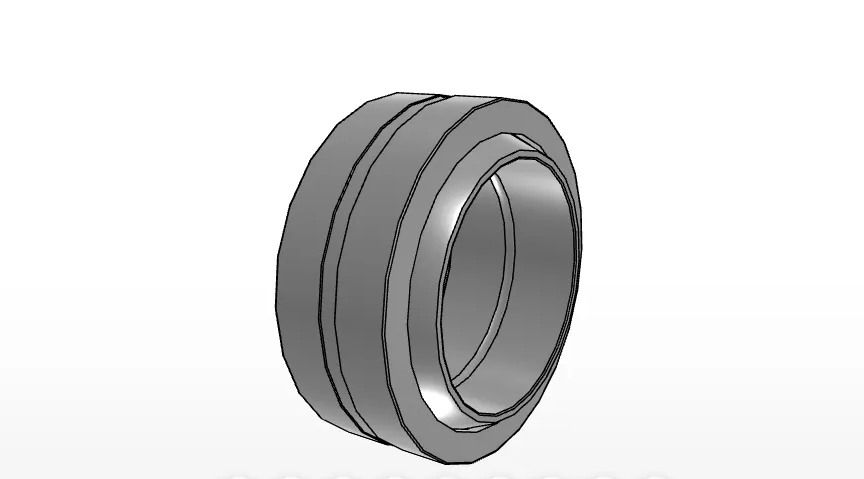

IKO GE160ES
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE160ES
Shaft Diameter
160
mm
Inside Diameter
160
mm
Outer Diameter
230
mm
Width of innerring
105
mm
Width
80
mm
Diameter
200.0
mm
rs min.
0.0
mm
rs min.
1.0
mm
rs min.
1.0
mm
Angle
8
degree
da min
165.5
mm
da max
170.0
mm
da max
224.5
mm
da min
195.0
mm
Dynamic load capacity
1570000
N
Static load capacity
9410000
N
Mass
14.40
kg
