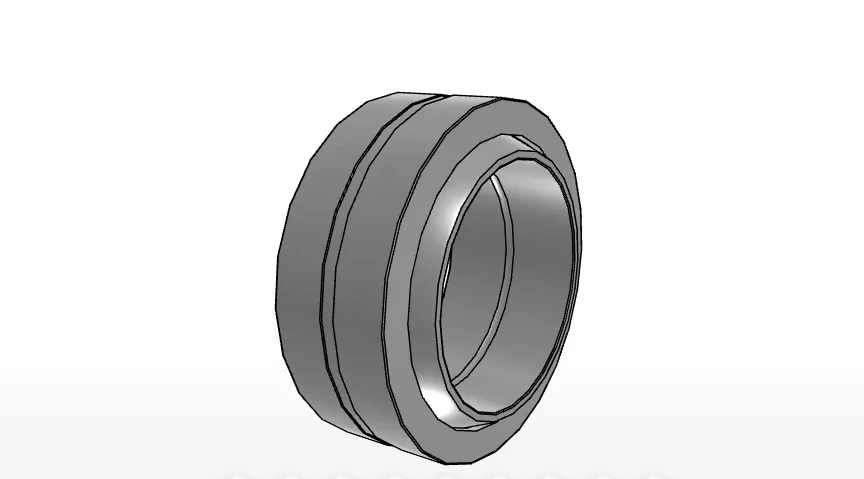

IKO GE200ES

Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

GE200ES

Order Number GE200ES
Shaft Diameter 200 mm
Inside Diameter 200 mm
Outer Diameter 290 mm
Width of innerring 130 mm
Width 100 mm
Diameter 250.0 mm
rs min. 0.0 mm
rs min. 1.1 mm
rs min. 1.1 mm
Angle 7 degree
da min 207.0 mm
da max 213.5 mm
da max 283.0 mm
da min 244.0 mm
Dynamic load capacity 2450000 N
Static load capacity 14700000 N
Mass 28.10 kg
