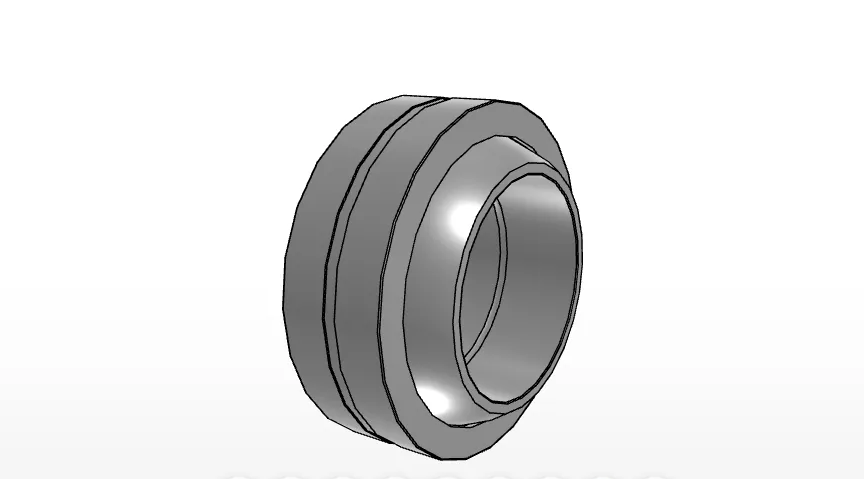

IKO GE200GS
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE200GS
Shaft Diameter
200
mm
Inside Diameter
200
mm
Outer Diameter
320
mm
Width of innerring
165
mm
Width
100
mm
Diameter
275.0
mm
rs min.
0.0
mm
rs min.
1.1
mm
rs min.
1.1
mm
Angle
15
degree
da min
207.0
mm
da max
220.0
mm
da max
313.0
mm
da min
269.0
mm
Dynamic load capacity
2700000
N
Static load capacity
16200000
N
Mass
43.80
kg
