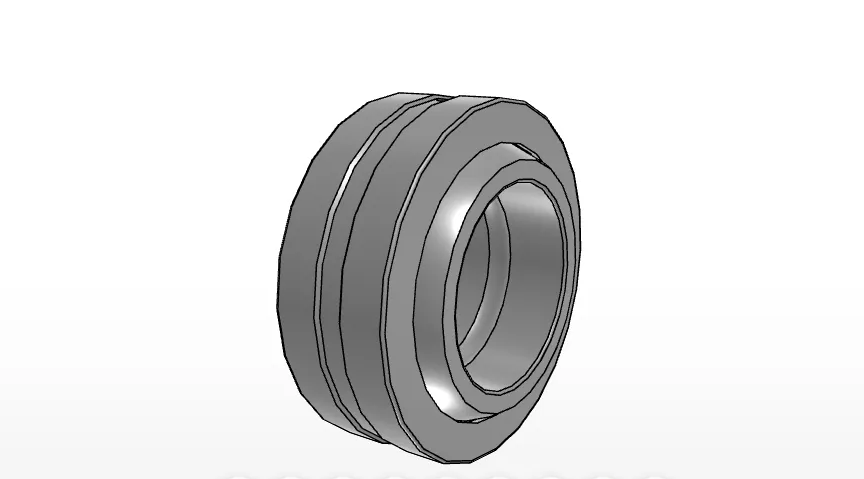

IKO GE20ES
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE20ES
Shaft Diameter
20
mm
Inside Diameter
20
mm
Outer Diameter
35
mm
Width of innerring
16
mm
Width
12
mm
Diameter
29.0
mm
rs min.
0.0
mm
rs min.
0.3
mm
rs min.
0.3
mm
Angle
9
degree
da min
22.5
mm
da max
24.0
mm
da max
32.5
mm
da min
30.5
mm
Dynamic load capacity
34100
N
Static load capacity
205000
N
Mass
0.07
kg
