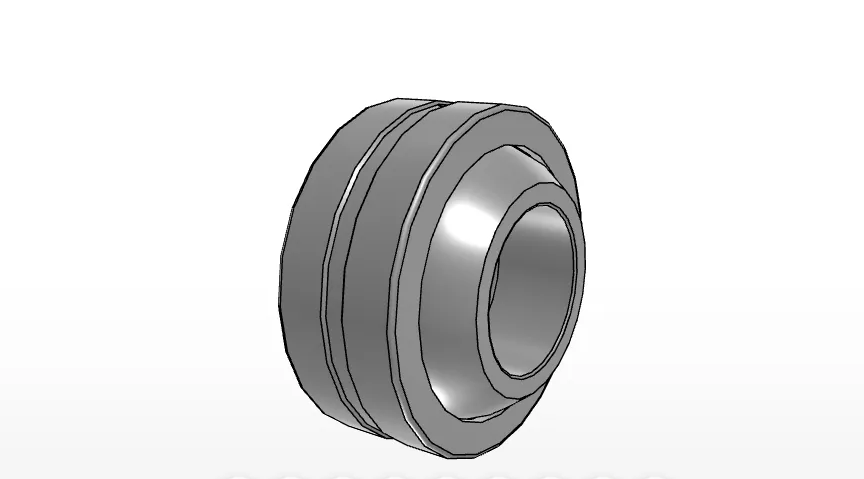

IKO GE20GS
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE20GS
Shaft Diameter
20
mm
Inside Diameter
20
mm
Outer Diameter
42
mm
Width of innerring
25
mm
Width
16
mm
Diameter
35.5
mm
rs min.
0.0
mm
rs min.
0.3
mm
rs min.
0.6
mm
Angle
17
degree
da min
22.5
mm
da max
25.0
mm
da max
37.5
mm
da min
37.0
mm
Dynamic load capacity
55700
N
Static load capacity
334000
N
Mass
0.16
kg
