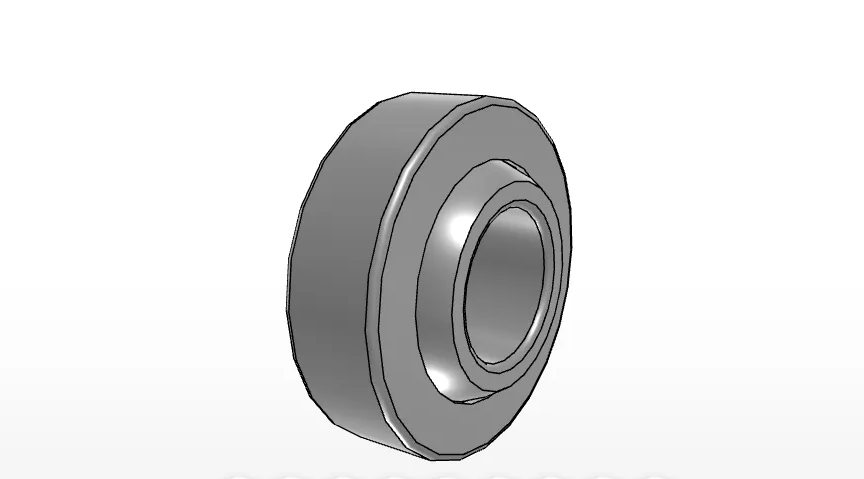

IKO GE6E
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
GE6E
Shaft Diameter
6
mm
Inside Diameter
6
mm
Outer Diameter
14
mm
Width of innerring
6
mm
Width
4
mm
Diameter
10.0
mm
rs min.
0.0
mm
rs min.
0.3
mm
rs min.
0.3
mm
Angle
13
degree
da min
8.0
mm
da max
8.0
mm
da max
11.5
mm
da min
10.0
mm
Dynamic load capacity
3920
N
Static load capacity
23500
N
Mass
0.00
kg
