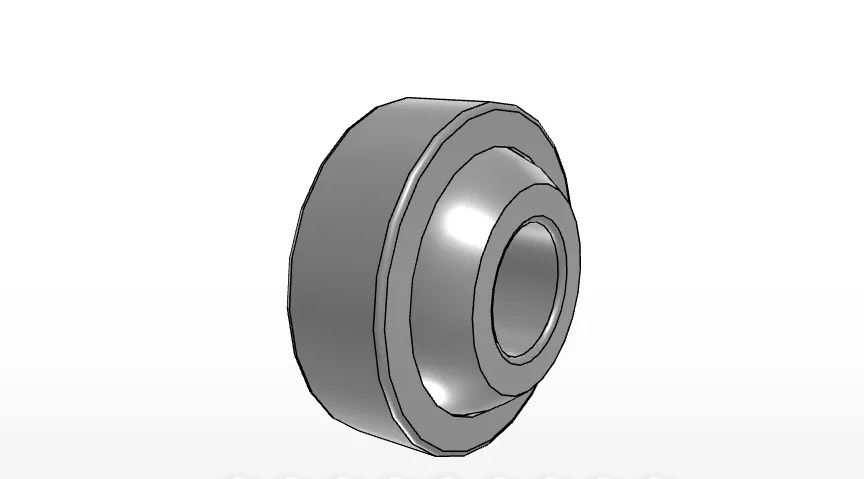

IKO GE6G
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
GE6G
Shaft Diameter
6
mm
Inside Diameter
6
mm
Outer Diameter
16
mm
Width of innerring
9
mm
Width
5
mm
Diameter
13.0
mm
rs min.
0.0
mm
rs min.
0.3
mm
rs min.
0.3
mm
Angle
21
degree
da min
8.5
mm
da max
9.0
mm
da max
13.5
mm
da min
13.0
mm
Dynamic load capacity
6370
N
Static load capacity
38200
N
Mass
0.01
kg
