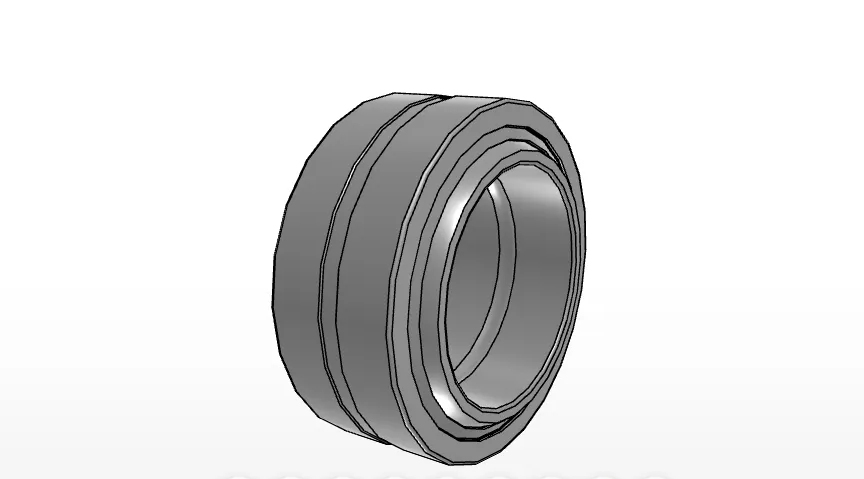

IKO GE70ES2RS
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, With Seals
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE70ES-2RS

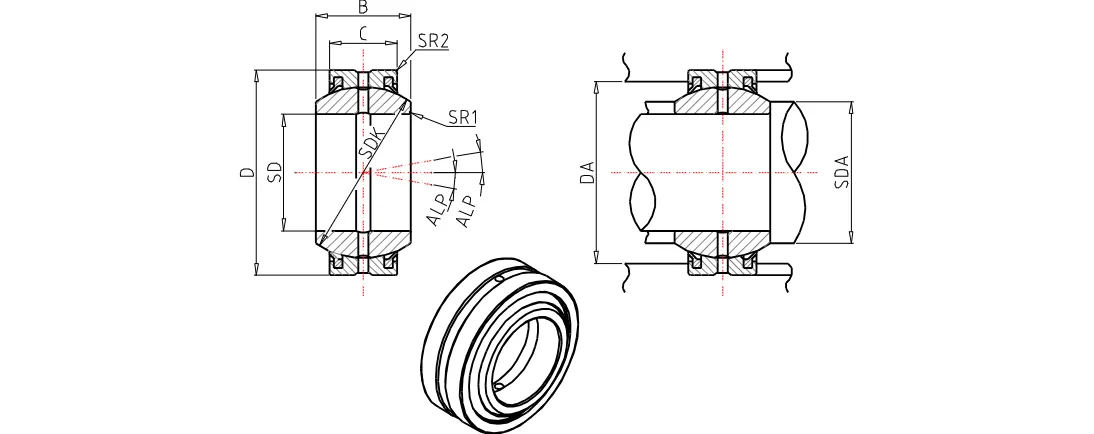

Shaft diameter
70
mm
Inside diameter
70
mm
Outer Diameter
105
mm
Width of innerring
49
mm
Width
40
mm
Diameter
92.0
mm
rs min.
1.0
mm
rs min.
1.0
mm
da min
75.5
mm
da max
77.5
mm
da max
99.5
mm
da min
91.0
mm
Dynamic load capacity
361000
N
Static load capacity
2170000
N
Mass
1.51
kg
