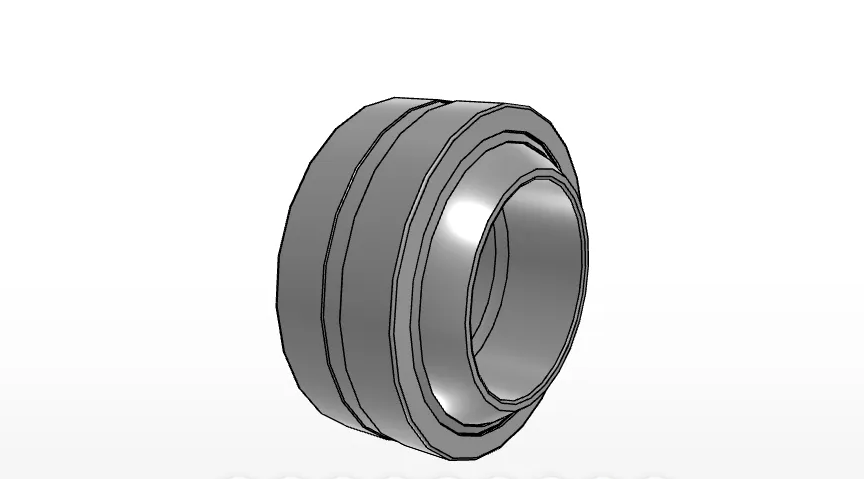

IKO GE80GS2RS
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, With Seals
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE80GS-2RS

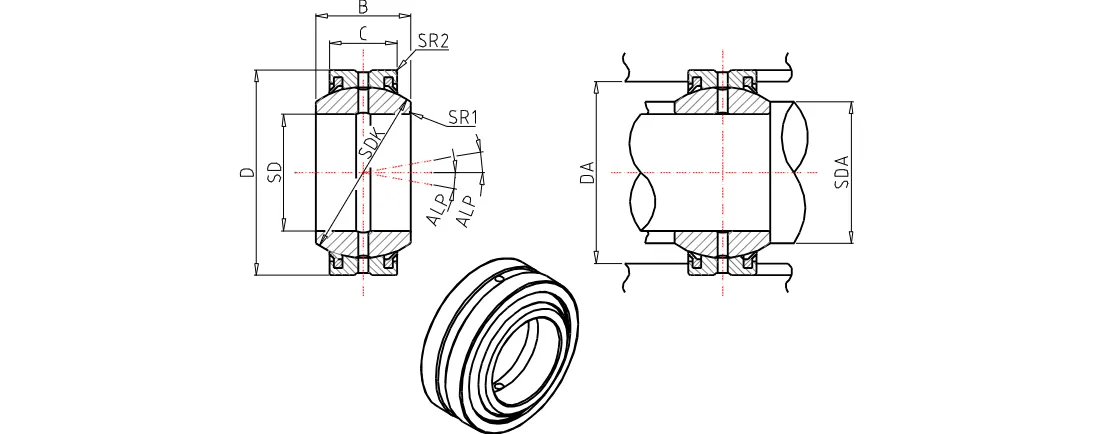

Shaft diameter
80
mm
Inside diameter
80
mm
Outer Diameter
130
mm
Width of innerring
75
mm
Width
50
mm
Diameter
115.0
mm
rs min.
1.0
mm
rs min.
1.0
mm
da min
85.5
mm
da max
87.0
mm
da max
124.5
mm
da min
112.0
mm
Dynamic load capacity
564000
N
Static load capacity
3380000
N
Mass
3.60
kg
