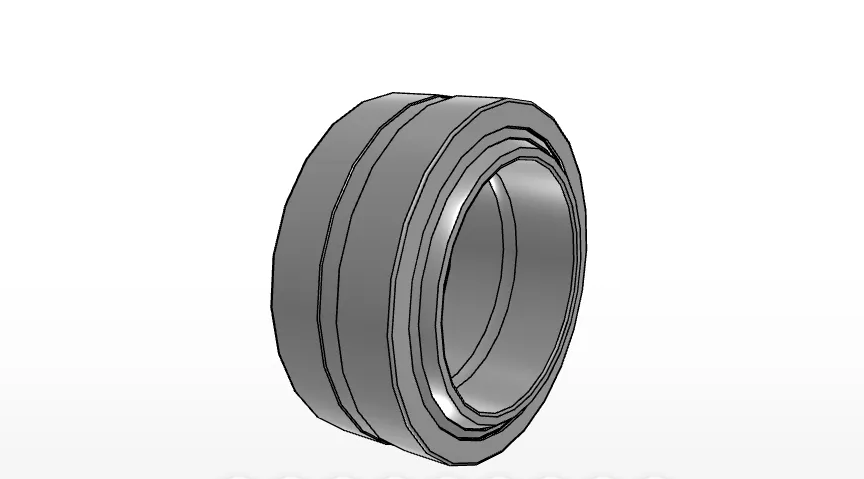

IKO GE90ES2RS
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, With Seals
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE90ES-2RS
Shaft diameter
90
mm
Inside diameter
90
mm
Outer Diameter
130
mm
Width of innerring
60
mm
Width
50
mm
Diameter
115.0
mm
rs min.
1.0
mm
rs min.
1.0
mm
da min
95.5
mm
da max
98.0
mm
da max
124.5
mm
da min
112.0
mm
Dynamic load capacity
564000
N
Static load capacity
3380000
N
Mass
2.82
kg
