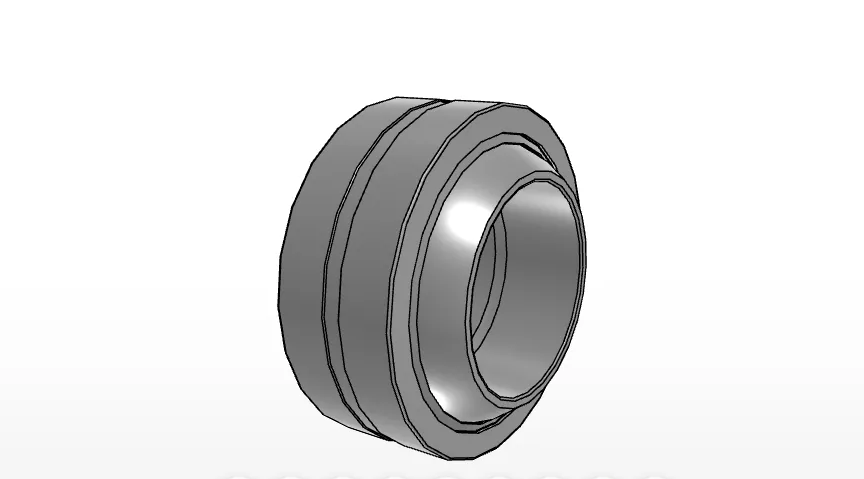

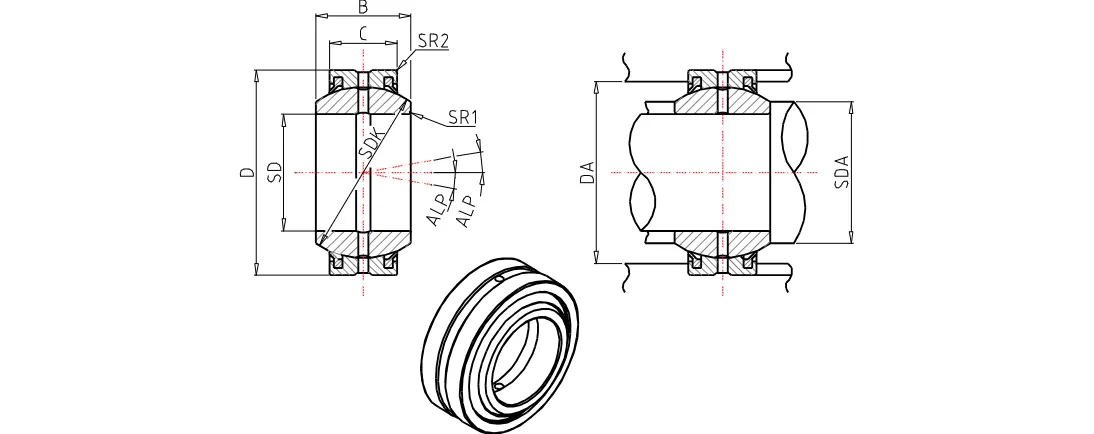

IKO GE90GS2RS
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, With Seals
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
GE90GS-2RS
Shaft diameter
90
mm
Inside diameter
90
mm
Outer Diameter
150
mm
Width of innerring
85
mm
Width
55
mm
Diameter
130.0
mm
rs min.
1.0
mm
rs min.
1.0
mm
da min
95.5
mm
da max
98.0
mm
da max
144.5
mm
da min
127.0
mm
Dynamic load capacity
701000
N
Static load capacity
4210000
N
Mass
5.41
kg
