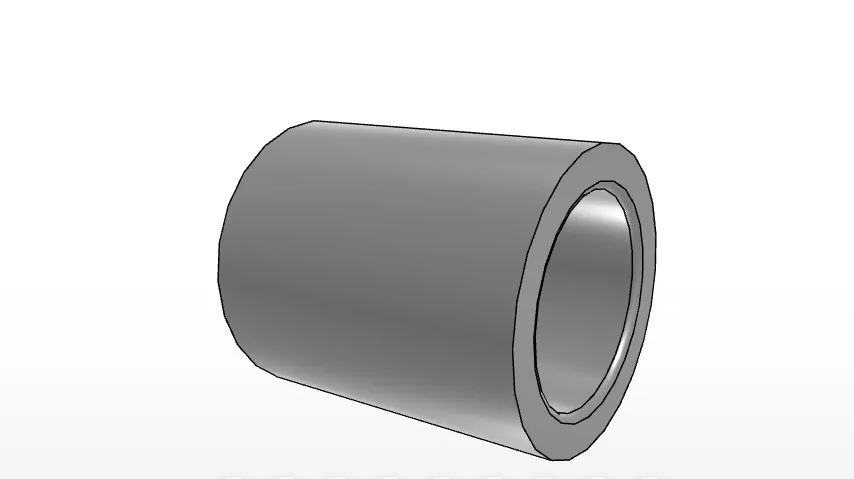

IKO IRB1016
Inner Ring, Inch , For Shell Type, High Carbon Steel, To Assemble with BA1416Z, BHA1416Z and YB1416
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

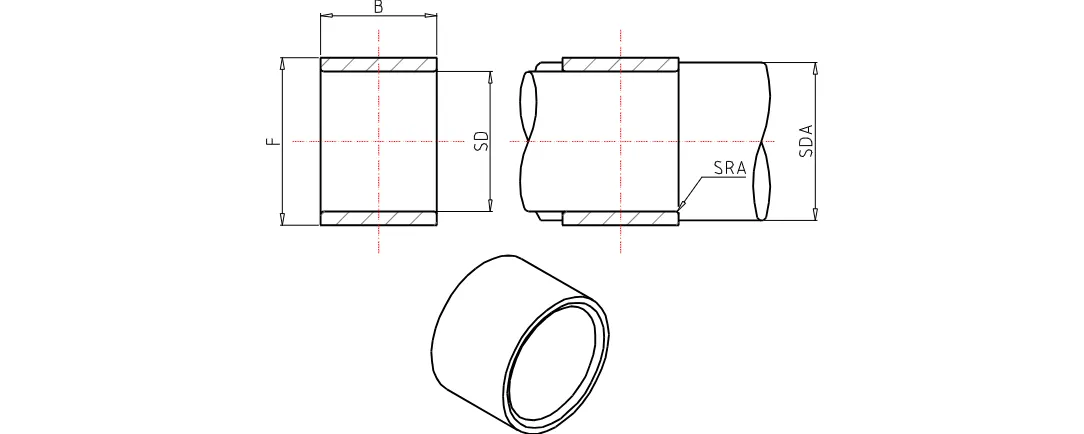

Order Number
IRB1016
Shaft Diameter
15.88
mm
Inside Diameter
15.88
mm
Outer Diameter
22.23
mm
Width
25.78
mm
da min
20.7
mm
da max
21.2
mm
ras max
0.6
mm
Assembled bearings (BA_Z, BAM)
BA 1416Z
Assembled bearings (BHA_Z, BHAM)
BHA 1416Z
Assembled bearings (YB, YBH)
YB 1416
Mass
37.5
g
