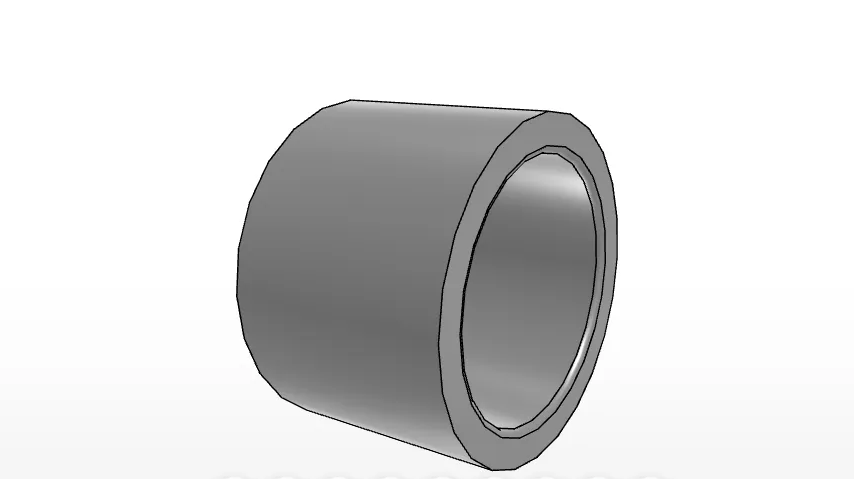

IKO IRB1412
Inner Ring, Inch , For Shell Type, High Carbon Steel, To Assemble with BA1812Z, BHA1812Z and YB1812
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
IRB1412
Shaft Diameter
22.23
mm
Inside Diameter
22.23
mm
Outer Diameter
28.58
mm
Width
19.43
mm
da min
27.0
mm
da max
27.5
mm
ras max
0.6
mm
Assembled bearings (BA_Z, BAM)
BA 1812Z
Assembled bearings (BHA_Z, BHAM)
BHA 1812Z
Assembled bearings (YB, YBH)
YB 1812
Mass
37.5
g
