IKO IRB86
Inner Ring, Inch , For Shell Type, High Carbon Steel, To Assemble with BA116Z

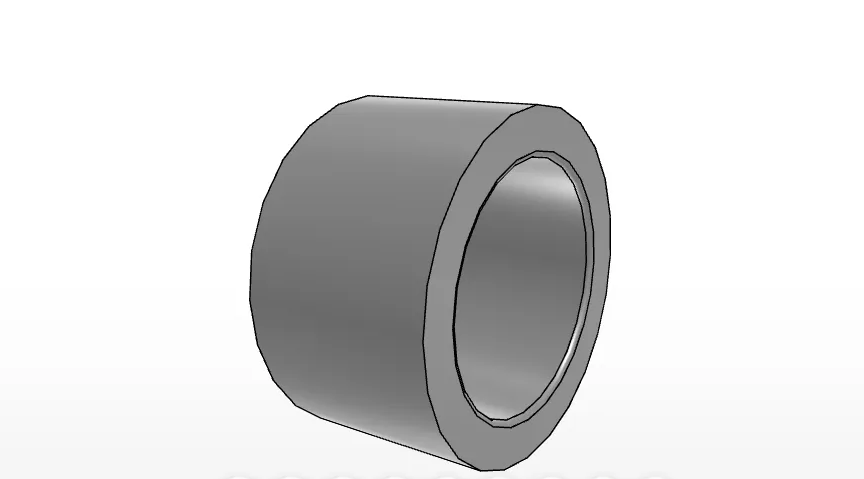

IKO IRB86 Inner Ring for Shell-Type Assembly
The IKO IRB86 is an inner ring in the IKO Inner Rings product series. It is designed for shell-type use and is identified for assembly with BA116Z.
What bearing type and material are listed for the IRB86?
The listed bearing type is Inner Rings, and the listed bearing material is High Carbon Chrome Steel. The detail description also identifies the ring as high carbon steel.

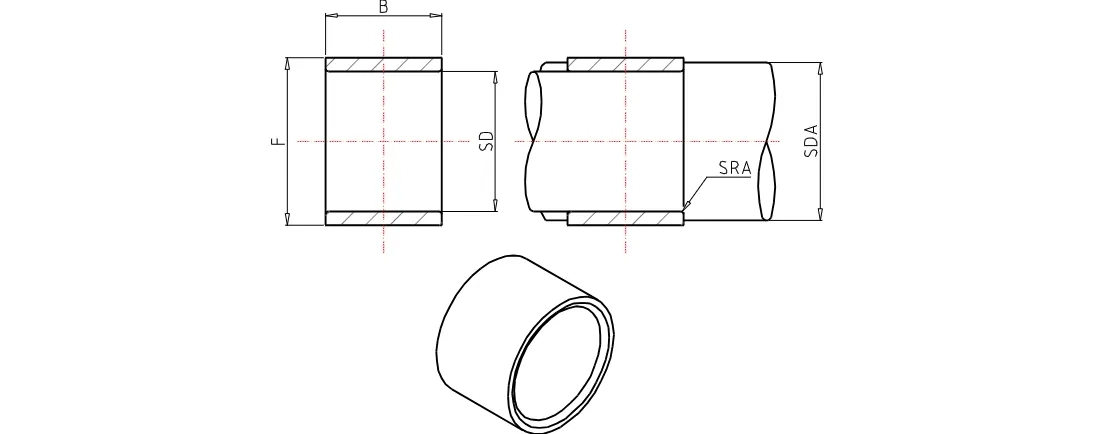

IRB86 Dimensions and Product Specifications
- Order Number: IRB86
- Shaft Diameter: 12.70 mm
- Inside Diameter: 12.70 mm
- Outer Diameter: 17.46 mm
- Width: 9.90 mm
- da min: 16.9 mm
- da max: 16.9 mm
- ras max: 0.3 mm
- Mass: 8.5 g
What are the stated IRB86 size values?
The IRB86 has a 12.70 mm shaft diameter and inside diameter, a 17.46 mm outer diameter, and a 9.90 mm width. Additional listed values include da min and da max of 16.9 mm and ras max of 0.3 mm.
IRB86 Compatibility and Series Information
The product is categorized under Brand > IKO > Inner Rings. The supplied compatibility data lists assembly with BA116Z; compatibility entries for BHA_Z/BHAM and YB/YBH are not listed.
Which assembled bearing is listed for the IRB86?
Under assembled bearings for BA_Z and BAM, the listed bearing is BA 116Z. No assembled bearing is listed for BHA_Z/BHAM or YB/YBH in the supplied data.
