IKO IRB912
Inner Ring, Inch , For Shell Type, High Carbon Steel, To Assemble with BA1312Z, BHA1312Z and YBH1312

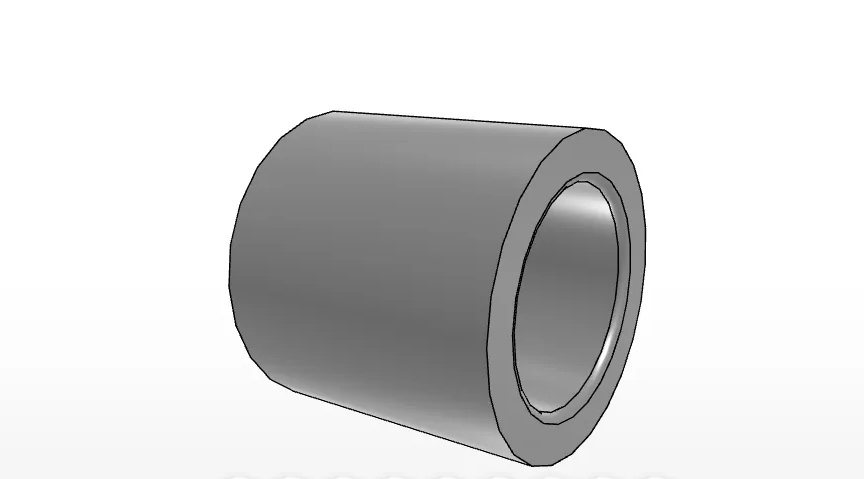

IKO IRB912 Inner Ring for Shell-Type Assembly
The IKO IRB912 is an Inner Rings series component classified under Brand > IKO > Inner Rings. It is an inch inner ring designed for shell-type assembly and supplied as the order number IRB912.
What bearing part is the IRB912 intended to assemble with?
The supplied product data identifies the IRB912 for assembly with BA1312Z, BHA1312Z, and YBH1312 bearings. It is listed for BA_Z/BAM, BHA_Z/BHAM, and YB/YBH assembled-bearing references.

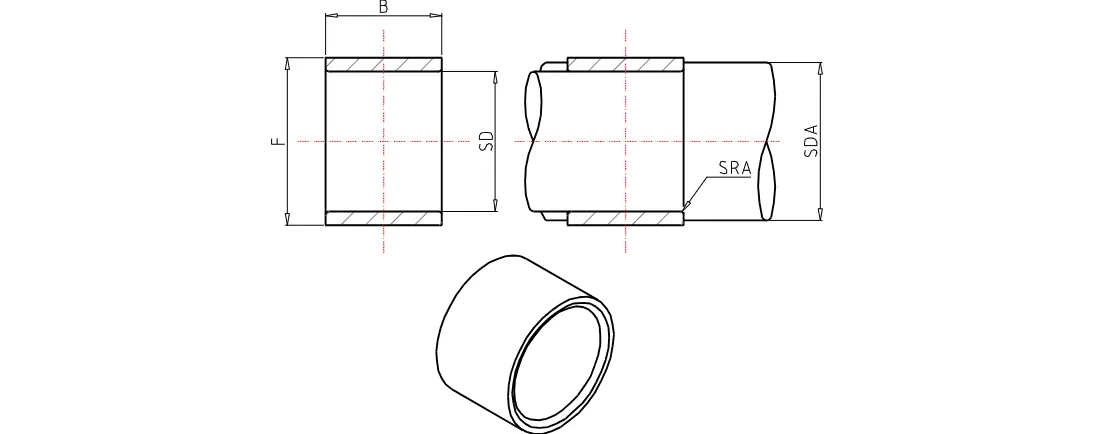

IRB912 Dimensions and Material Specification
The IRB912 has a shaft diameter and inside diameter of 14.29 mm, an outer diameter of 20.64 mm, and a width of 19.43 mm. Additional listed dimensions include da minimum 19.0 mm, da maximum 19.6 mm, and ras maximum 0.6 mm.
What material and mass are specified for the IRB912?
The bearing material is listed as high carbon chrome steel, while the descriptive product title refers to high carbon steel. The listed mass is 26.0 g.
IRB912 Product Identification Summary
This IKO inner ring provides a defined bore, outer diameter, and width for the referenced compatible assemblies. The product summary below uses only the supplied specification data.
- Model: IRB912
- Brand: IKO
- Series and type: Inner Rings
- Inside diameter: 14.29 mm
- Outer diameter: 20.64 mm
- Width: 19.43 mm
- Compatible references: BA1312Z, BHA1312Z, YBH1312
How should the IRB912 specification be used?
Use the listed model, dimensions, material description, and compatible bearing references to compare or identify the component. Assembly suitability should be checked against the specified mating bearings and application requirements before use.
