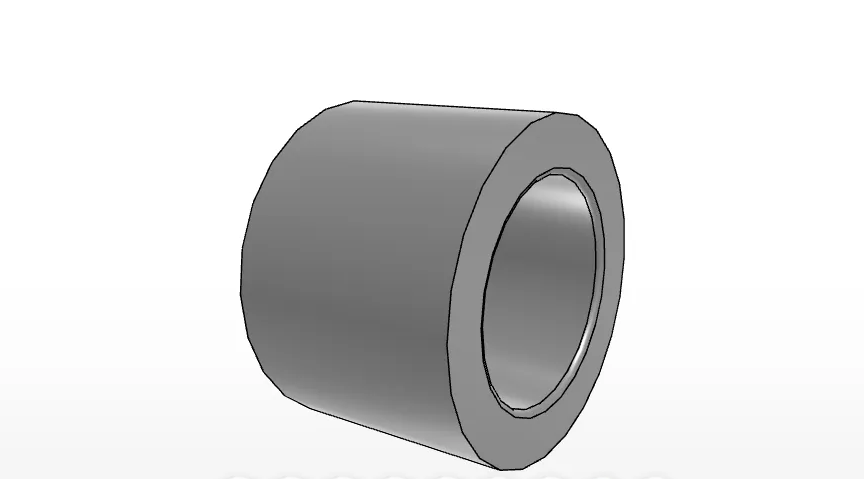

IKO IRT10101
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1510Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1010-1
Shaft Diameter
10
mm
Inside Diameter
10
mm
Outer Diameter
15
mm
Width
10.5
mm
rs min.
0.3
mm
da min
12
mm
da max
14.0
mm
Assembled bearings (TA_Z, TAM)
TA 1510Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
7,9
g
IKO IRT10101 Inner Ring Provides a Metric Inner Ring Solution
What is the IKO IRT10101?
The IKO IRT10101 is an inner ring in the IKO Inner Rings product series. It is listed for shell-type use and is intended to assemble with TA1510Z.
- Brand: IKO
- Model: IRT10101
- Order number: IRT1010-1
- Bearing type: Inner Rings
- Category: Brand > IKO > Inner Rings
IKO IRT10101 Includes the Listed Metric Dimensions and Edge Values
What dimensions are provided for this inner ring?
The supplied product data identifies the following dimensions for the IRT10101 inner ring:
- Shaft diameter: 10 mm
- Inside diameter: 10 mm
- Outer diameter: 15 mm
- Width: 10.5 mm
- rs min.: 0.3 mm
- da min.: 12 mm
- da max.: 14.0 mm
IKO IRT10101 Uses High Carbon Chrome Steel and Has Recorded Mass Data
What material and assembly information is specified?
The listed bearing material is high carbon chrome steel, also described in the product title as high carbon steel. The recorded mass is 7.9 g. The product data lists TA 1510Z as an assembled bearing for the TA_Z and TAM group; no assembled bearing is listed for TLA_Z, TLAM, YT, or YTL groups.
- Material: High carbon chrome steel
- Mass: 7.9 g
- Assembly reference: TA 1510Z
