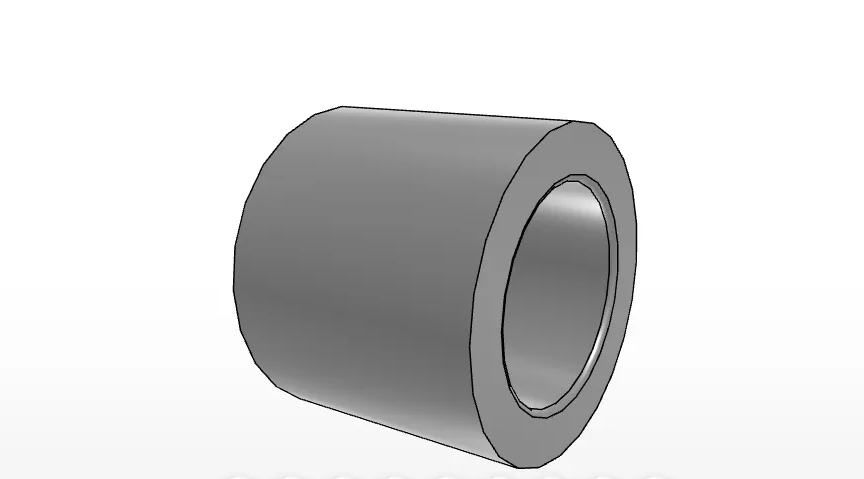

IKO IRT10121
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1512Z, TLA1512Z
IKO IRT10121 Inner Ring Provides a Metric Inner Ring Option
The IKO IRT10121 is part of the IKO Inner Rings series and is listed under Brand > IKO > Inner Rings. The product data identifies it as an inner ring for shell-type assembly, with order number IRT1012-1.
What bearing type and brand are associated with this part?
The inner ring is branded IKO, and the bearing type is listed as Inner Rings.
IRT10121 Offers the Stated Metric Dimensions and Material
The supplied data lists a shaft diameter and inside diameter of 10 mm, an outer diameter of 15 mm, and a width of 12.5 mm. The ring material is specified as high carbon chrome steel, and its mass is listed as 9.4 g.
- Shaft diameter: 10 mm
- Inside diameter: 10 mm
- Outer diameter: 15 mm
- Width: 12.5 mm
- rs min.: 0.3 mm
- da min.: 12 mm
- da max.: 14.0 mm
What material and mass are specified?
The product data specifies high carbon chrome steel and a mass of 9.4 g.
IRT10121 Is Identified for Assembly With Specific Bearing Models
The product data identifies the IRT10121 for assembly with TA1512Z and TLA1512Z. The data lists the assembled bearing groups as TA_Z/TAM and TLA_Z/TLAM; no assembled bearing is listed for the YT or YTL groups.
- TA_Z, TAM group: TA 1512Z
- TLA_Z, TLAM group: TLA 1512Z
- YT, YTL group: none listed
Which bearings are named for assembly with this inner ring?
According to the supplied data, the named assemblies are TA1512Z and TLA1512Z.
