IKO IRT10122
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TLA1412Z

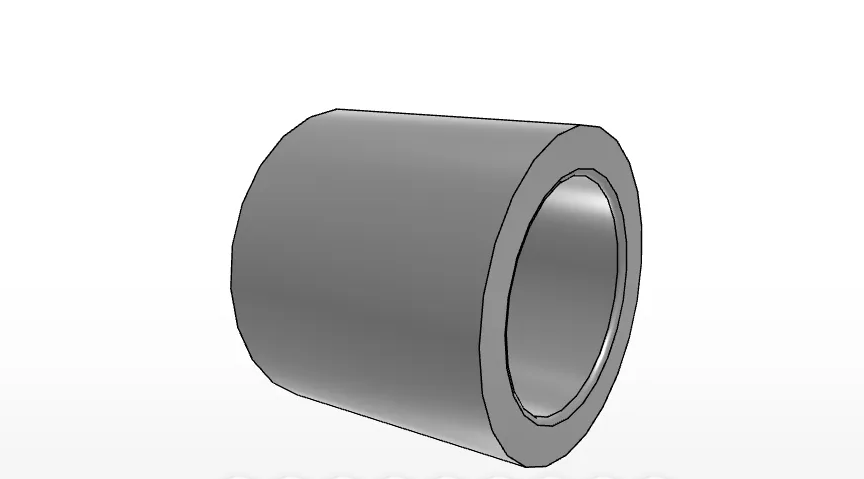

The IKO IRT10122 Is a Metric Inner Ring
The IKO IRT10122 belongs to the IKO Inner Rings series and is listed within the category path Brand > IKO > Inner Rings. The product is described as a metric inner ring for shell type and is intended to assemble with TLA1412Z.
What bearing type and model does this product represent?
This product is the IRT10122 inner ring from IKO. The supplied order-number data is shown as IRT1012-2, while the bearing type is listed as Inner Rings.
The IRT10122 Has Stated Metric Dimensions and Material
The supplied specifications list a shaft diameter and inside diameter of 10 mm, an outer diameter of 14 mm, and a width of 12.5 mm. The bearing material is listed as high carbon chrome steel, and the mass is listed as 7.2 g.
- Shaft diameter: 10 mm
- Inside diameter: 10 mm
- Outer diameter: 14 mm
- Width: 12.5 mm
- rs min.: 0.3 mm
- da min.: 12 mm
- da max.: 13.0 mm
- Mass: 7.2 g
What are the stated material and size details?
The IRT10122 is listed as high carbon chrome steel. Its dimensional data includes a 10 mm bore, 14 mm outer diameter, 12.5 mm width, and a minimum fillet radius of 0.3 mm.
The IRT10122 Is Identified for TLA1412Z Assembly
The product description states that the IRT10122 is to assemble with TLA1412Z. The supplied assembly data lists TLA 1412Z under assembled bearings in the TLA_Z and TLAM group; the TA_Z, TAM, YT, and YTL entries contain no listed bearing designation.
- Model: IRT10122
- Brand: IKO
- Series: Inner Rings
- Listed assembly: TLA 1412Z
Which assembled bearing is listed for this inner ring?
The supplied data identifies TLA 1412Z as the assembled bearing for the IRT10122. No other assembled bearing designation is provided in the product data.
