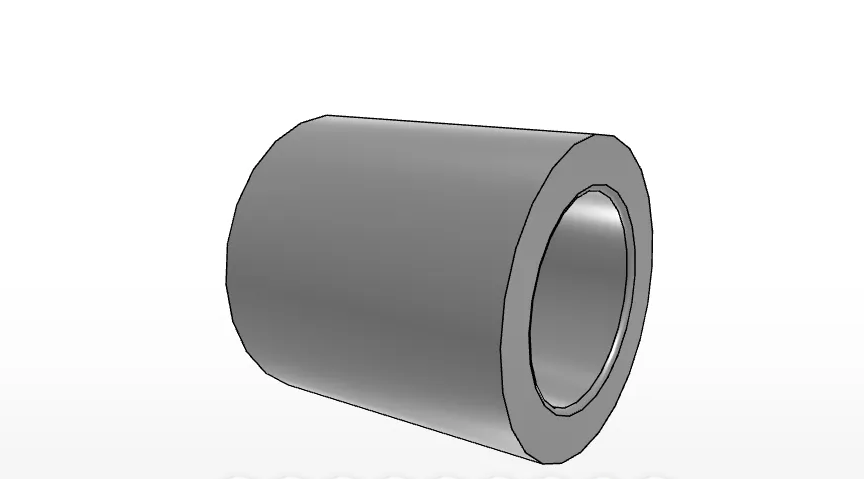

IKO IRT10151
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1515Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1015-1
Shaft Diameter
10
mm
Inside Diameter
10
mm
Outer Diameter
15
mm
Width
15.5
mm
rs min.
0.3
mm
da min
12
mm
da max
14.0
mm
Assembled bearings (TA_Z, TAM)
TA 1515Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
11,7
g
IKO IRT10151 Inner Ring for Metric Bearing Assembly
What is the IRT10151?
The IKO IRT10151 is an inner ring in the IKO Inner Rings series. The supplied order number is IRT1015-1, and it is intended for assembly with TA1515Z.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner ring
- Category: Brand > IKO > Inner Rings
IRT10151 Dimensions and Material Specification
What dimensions and material are listed for this inner ring?
The product data identifies the IRT10151 as a metric, shell-type inner ring made from high carbon chrome steel. Its listed mass is 11.7 g.
- Shaft diameter: 10 mm
- Inside diameter: 10 mm
- Outside diameter: 15 mm
- Width: 15.5 mm
- rs minimum: 0.3 mm
- da minimum: 12 mm
- da maximum: 14.0 mm
IRT10151 Assembly Reference and Identification
Which assembled bearing reference is provided?
The supplied data lists TA 1515Z under assembled bearings in the TA_Z and TAM group. No assembled bearing references are listed in the TLA_Z, TLAM, YT, or YTL groups.
Use the listed dimensions and assembly reference when checking this inner ring against the intended bearing arrangement. The record also describes the part as metric, for shell type, high carbon steel, and to assemble with TA1515Z.
