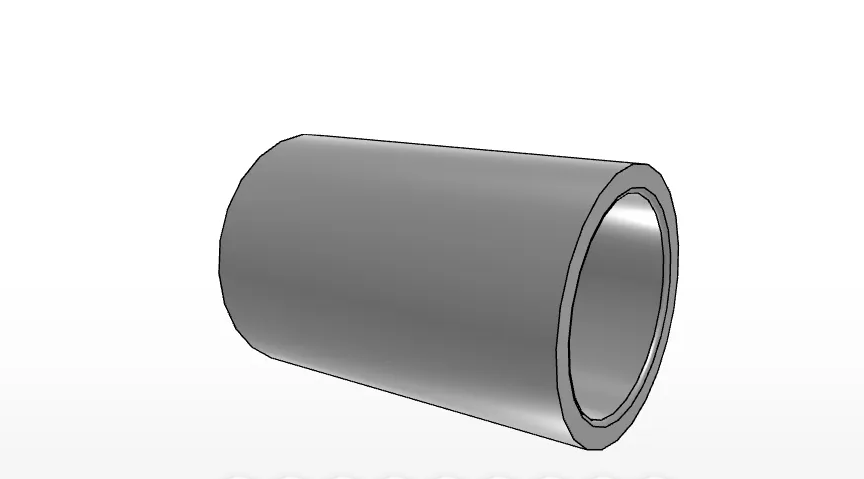

IKO IRT1222
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TLA1522Z
The IKO IRT1222 Is a Metric Inner Ring for Shell-Type Assembly
The IKO IRT1222 belongs to the IKO Inner Rings series and is identified for use with the TLA1522Z assembled bearing. It is listed as a metric, shell-type inner ring made from high carbon chrome steel.
What is the IRT1222 designed to assemble with?
The product data identifies the TLA 1522Z as the assembled bearing for this inner ring. The TA_Z, TAM, YT, and YTL compatibility fields do not list additional matched bearings.

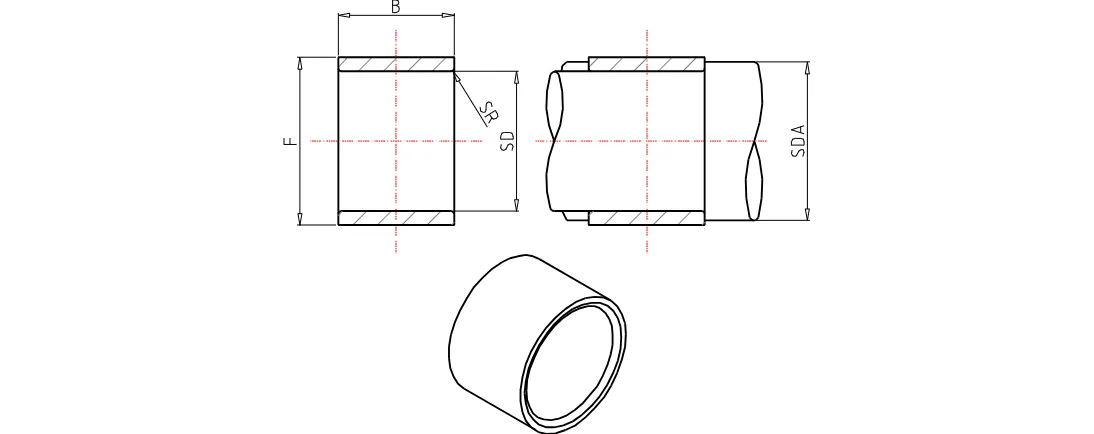

The IRT1222 Provides Stated Metric Dimensions for Selection
- Shaft diameter: 12 mm
- Inside diameter: 12 mm
- Outer diameter: 15 mm
- Width: 22.5 mm
- rs minimum: 0.3 mm
- da range: 14 mm minimum to 14.5 mm maximum
- Mass: 11 g
What size shaft does the IRT1222 use?
According to the supplied data, both the shaft diameter and inside diameter are 12 mm. Confirm these values against the mating shaft and bearing arrangement before ordering.
The IRT1222 Is Categorized as an IKO High Carbon Chrome Steel Inner Ring
The component is classified under Brand > IKO > Inner Rings. Its listed bearing type is Inner Rings, and its listed bearing material is High Carbon Chrome Steel.
What identifying and material details are supplied?
The order number is IRT1222, the brand is IKO, and the product series is Inner Rings. The supplied material description is high carbon chrome steel; no additional material grade, certification, or application claims are provided.
