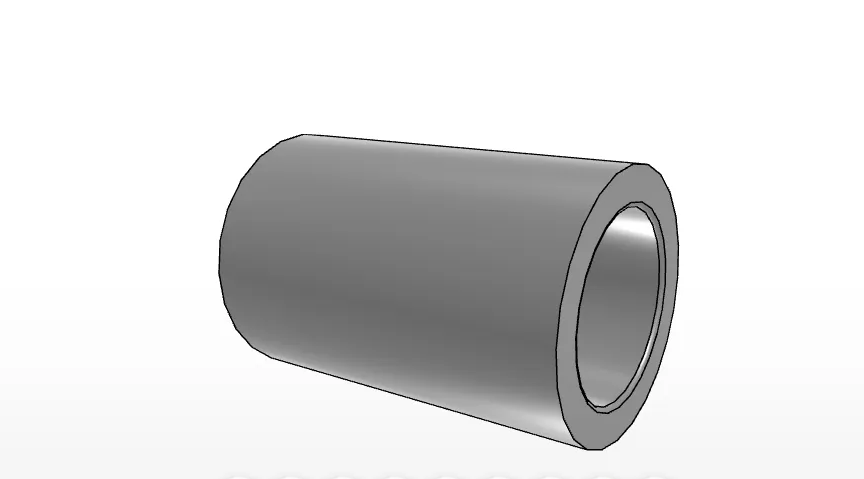

IKO IRT12252
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1725Z, YT1725
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1225-2
Shaft Diameter
12
mm
Inside Diameter
12
mm
Outer Diameter
17
mm
Width
25.5
mm
rs min.
0.3
mm
da min
14
mm
da max
16.0
mm
Assembled bearings (TA_Z, TAM)
TA 1725Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
YT 1725
Mass
22,5
g
IKO IRT12252 Inner Ring Is a Metric Inner Rings Component
What is the IKO IRT12252?
The IKO IRT12252 is listed in the Inner Rings product series under the category path Brand > IKO > Inner Rings. The supplied data identifies it as an inner ring for shell-type use, with order number IRT1225-2.
IRT12252 Provides the Stated Metric Dimensions and Steel Construction
What dimensions and material are specified for the IRT12252?

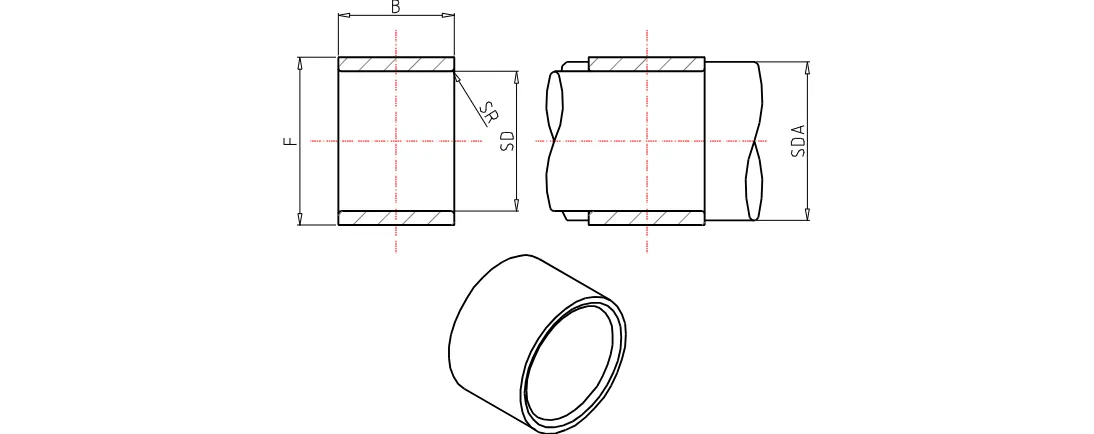

- Shaft diameter: 12 mm
- Inside diameter: 12 mm
- Outer diameter: 17 mm
- Width: 25.5 mm
- rs min.: 0.3 mm
- da min.: 14 mm
- da max.: 16.0 mm
- Material: high carbon steel; list data also identifies the bearing material as high carbon chrome steel
- Mass: 22.5 g
IRT12252 Is Identified for Assembly with Listed IKO Bearing Models
Which assembled bearings are listed for use with this inner ring?
The product data lists compatibility information for assembly with the following bearing references:
- TA_Z / TAM series: TA 1725Z
- TLA_Z / TLAM series: no assembled bearing is listed
- YT / YTL series: YT 1725
The detail title also states that the IRT12252 is to assemble with TA1725Z and YT1725.
