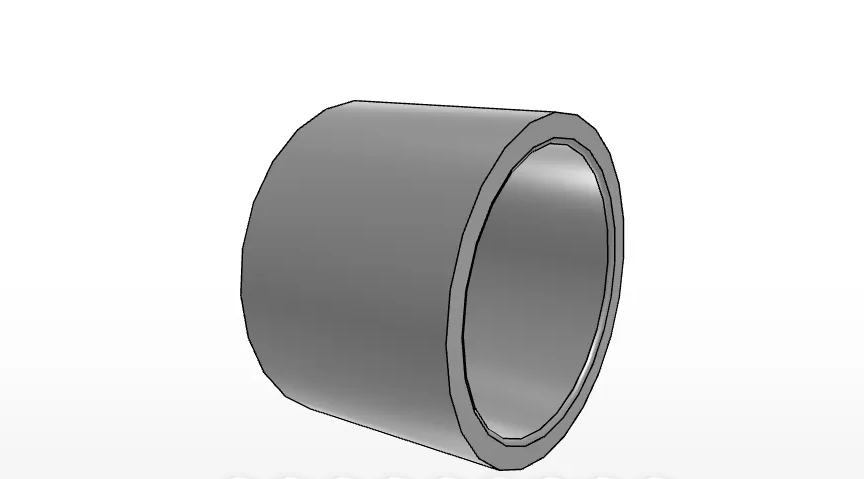

IKO IRT1512
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TLA1812Z
IKO IRT1512 Metric Inner Ring Introduction
The IKO IRT1512 is an inner ring in the IKO Inner Rings product series. It is listed as a metric inner ring for shell-type use and is specified to assemble with TLA1812Z. The ring is made from high carbon steel, with the bearing material also identified as high carbon chrome steel.
What are the basic identifying details for the IRT1512?
- Order number: IRT1512
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner ring
- Material: High carbon steel / high carbon chrome steel
IKO IRT1512 Dimensions and Specifications
The supplied product data lists the following metric dimensions and specification values for the IRT1512. These details can be used to compare the inner ring against the required shaft, housing, and assembly dimensions.
What dimensions are provided for the IRT1512?
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 18 mm
- Width: 12.5 mm
- rs min.: 0.3 mm
- da min.: 17 mm
- da max.: 17.5 mm
IKO IRT1512 Assembly and Product Data
The IKO IRT1512 is listed for assembly with TLA1812Z. Other supplied product data includes a mass of 7.5 g. The product category path is Brand > IKO > Inner Rings.
Which assembled bearing and mass information are recorded for this inner ring?
The supplied data records TLA1812Z under the TLA_Z / TLAM assembled bearing listing. No TA_Z, TAM, YT, or YTL assembled bearing designation is provided. The listed mass is 7.5 g, shown in the product data as 7,5 g.
