IKO IRT1513
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1813Z

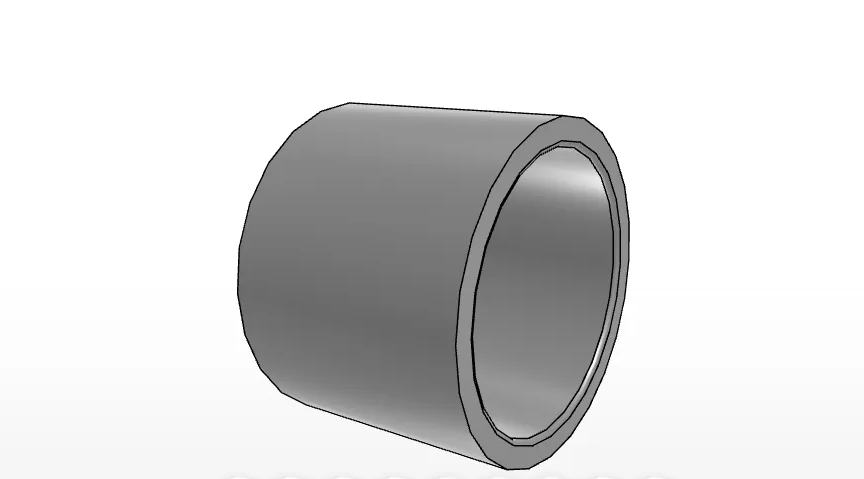

IKO IRT1513 Inner Ring for Metric Shell-Type Use
The IKO IRT1513 is an inner ring in the IKO Inner Rings series. It is listed for assembly with TA1813Z and has a metric shaft diameter and inside diameter of 15 mm.
What type of bearing component is the IRT1513?
The supplied data identifies the IRT1513 as an Inner Ring within the IKO Inner Rings product series. It is described as a metric inner ring for shell-type assembly.
IRT1513 Dimensions and Assembly Specifications
- Inside diameter: 15 mm
- Shaft diameter: 15 mm
- Outer diameter: 18 mm
- Width: 13.5 mm
- rs minimum: 0.3 mm
- da minimum: 17 mm
- da maximum: 17.5 mm
- Assembled bearing listed: TA1813Z
Which bearing is the IRT1513 designed to assemble with?
The product data lists the IRT1513 for assembly with TA 1813Z in the TA_Z and TAM bearing group. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groups.
Material and Product Identification for IRT1513
The IKO IRT1513 inner ring is specified as high carbon steel in the title data and high carbon chrome steel in the structured bearing material field. Its listed mass is 8.1 g, shown in the source data as 8,1 g.
What identifying details should be checked before ordering?
Confirm the order number IRT1513, brand IKO, series Inner Rings, dimensions 15 mm x 18 mm x 13.5 mm, material designation, and compatibility with TA1813Z using the supplied product information.
