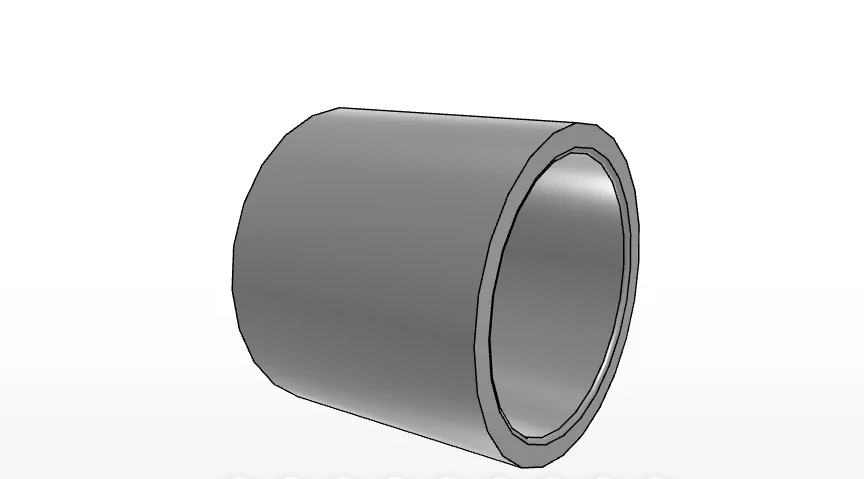

IKO IRT1515
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1815Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1515
Shaft Diameter
15
mm
Inside Diameter
15
mm
Outer Diameter
18
mm
Width
15.5
mm
rs min.
0.3
mm
da min
17
mm
da max
17.5
mm
Assembled bearings (TA_Z, TAM)
TA 1815Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
9,3
g
IKO IRT1515 Inner Ring Specifications
What are the stated dimensions for the IRT1515?
The IKO IRT1515 is an Inner Rings series metric inner ring with a 15 mm shaft diameter, 15 mm inside diameter, 18 mm outer diameter, and 15.5 mm width. Additional listed values include rs min. 0.3 mm, da min 17 mm, and da max 17.5 mm.
- Model: IRT1515
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner ring
- Mass: 9.3 g
IKO IRT1515 Material and Product Identity
What material and bearing category are listed for this inner ring?
The product data identifies the IRT1515 as an Inner Ring, Metric, For Shell Type. The detail information lists high carbon steel, while the structured bearing material field lists high carbon chrome steel.
- Category path: Brand > IKO > Inner Rings
- Bearing material field: High carbon chrome steel
- Description: Inner ring, metric, for shell type
IKO IRT1515 Assembly Information
Which assembled bearing is referenced for the IRT1515?
The supplied product data states that the IRT1515 is to assemble with TA1815Z. Under assembled bearings, TA 1815Z is listed for the TA_Z and TAM group; the TLA_Z, TLAM, YT, and YTL fields are listed with no matching bearing.
- Order number: IRT1515
- TA_Z, TAM assembly reference: TA 1815Z
- TLA_Z, TLAM reference: Not listed
- YT, YTL reference: Not listed
