IKO IRT15152
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2015Z, YT2015

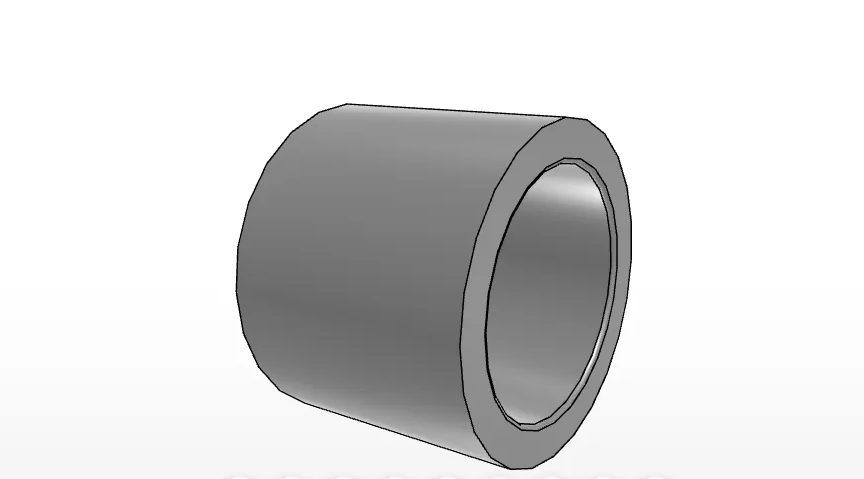

IKO IRT15152 Metric Inner Ring Introduction
The IKO IRT15152 is an inner ring in the IKO Inner Rings series. It has a 15 mm inside diameter, 20 mm outside diameter, and 15.5 mm width. The supplied order number is listed as IRT1515-2.
What are the basic dimensions of the IRT15152?
The IRT15152 has a shaft diameter and inside diameter of 15 mm, an outer diameter of 20 mm, and a width of 15.5 mm. The listed minimum fillet radius is 0.3 mm, with da minimum 17 mm and da maximum 19.0 mm.
IKO IRT15152 Material and Series Details
This product is categorized under Brand > IKO > Inner Rings. The supplied bearing type is Inner Rings, and the listed bearing material is high carbon chrome steel. The product introduction also identifies the component as a metric inner ring for shell type use.
What material is specified for the IRT15152?
The structured product data lists the bearing material as high carbon chrome steel. The product title separately refers to high carbon steel. No additional material grade or certification details are provided.
IKO IRT15152 Assembly and Reference Information
The IRT15152 is identified for assembly with TA2015Z and YT2015. The supplied data lists the mass as 16.4 g, shown in the source data as 16,4 g. No assembled bearing is listed for the TLA_Z or TLAM group.
Which assembled bearing references are included in the product data?
The listed assembled bearings are TA 2015Z for the TA_Z and TAM group and YT 2015 for the YT and YTL group. The TLA_Z and TLAM field is shown with a dash, indicating no assembled bearing reference is supplied there.
