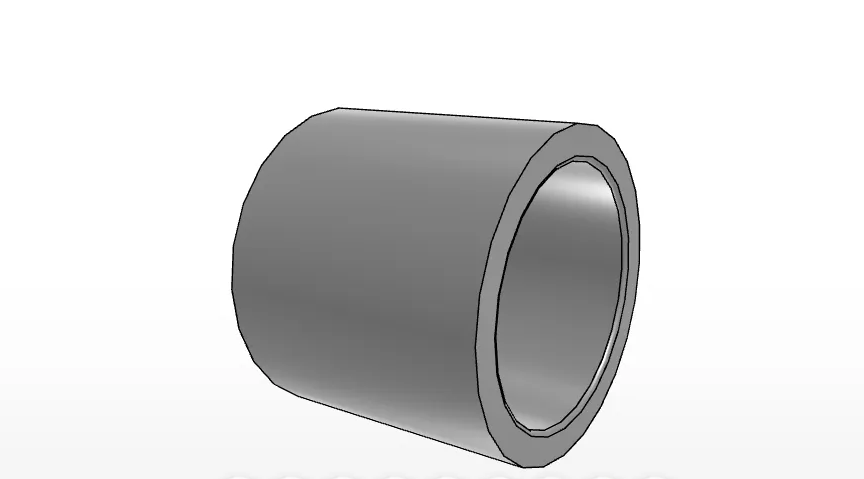

IKO IRT15161
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1916Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1516-1
Shaft Diameter
15
mm
Inside Diameter
15
mm
Outer Diameter
19
mm
Width
16.5
mm
rs min.
0.3
mm
da min
17
mm
da max
18.0
mm
Assembled bearings (TA_Z, TAM)
TA 1916Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
13,6
g
IKO IRT15161 Inner Ring Overview
What is the IKO IRT15161?
The IKO IRT15161 is an inner ring in the IKO Inner Rings product series. It is listed as a metric inner ring for shell-type use and is identified for assembly with TA1916Z. The supplied order number is IRT1516-1.
- Brand: IKO
- Product series: Inner Rings
- Bearing type: Inner Rings
- Category: Brand > IKO > Inner Rings
IRT15161 Dimensions and Material Details
What dimensions and material are provided for the IRT15161?
The supplied product data lists the following metric dimensions and material information:
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 19 mm
- Width: 16.5 mm
- rs min.: 0.3 mm
- da min.: 17 mm
- da max.: 18.0 mm
- Material: High carbon chrome steel
- Mass: 13.6 g
IRT15161 Assembly Reference Information
Which assembled bearing reference is listed for the IRT15161?
The product information identifies the IRT15161 for assembly with TA 1916Z. No assembled bearings are listed for the TLA_Z, TLAM, YT, or YTL references in the supplied data.
- Confirm the mating part number against your bearing requirement.
- Review the listed 15 mm inside diameter, 19 mm outer diameter, and 16.5 mm width.
- Use the supplied edge-limit values rs min., da min., and da max. as reference data.
