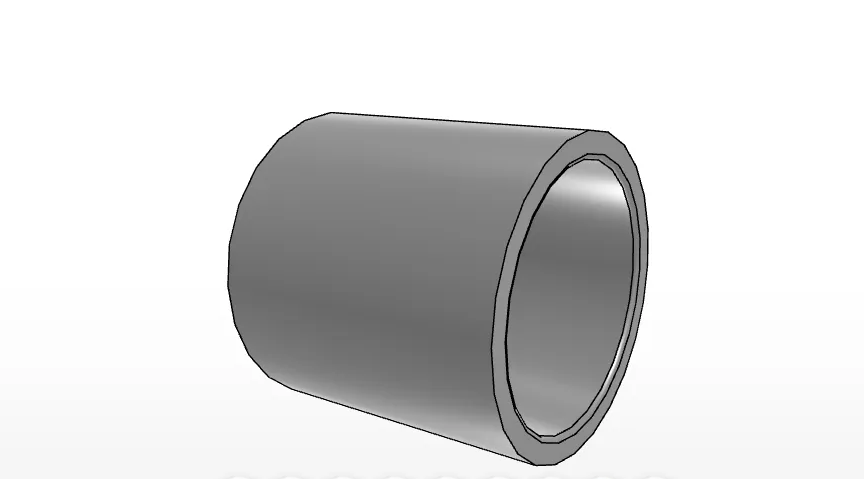

IKO IRT1517
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1817Z
IKO IRT1517 Inner Ring Fits the Inner Rings Product Series
The IKO IRT1517 is a metric inner ring in the IKO Inner Rings product series, categorized under Brand > IKO > Inner Rings. The supplied data identifies it as an inner ring for shell type use and indicates it is to be assembled with TA1817Z.
What bearing type and model does this product represent?
This product is the IKO IRT1517 inner ring. Its bearing type is listed as Inner Rings, and the associated assembled bearing reference is TA 1817Z.
The IRT1517 Provides Listed Metric Dimensions and Material Details
The supplied specifications list a shaft diameter and inside diameter of 15 mm, an outer diameter of 18 mm, and a width of 17.5 mm. Additional listed values include rs minimum of 0.3 mm, da minimum of 17 mm, da maximum of 17.5 mm, and mass of 10.5 g.
What material and dimensions are recorded for the IRT1517?
- Material: High carbon chrome steel; the title information also refers to high carbon steel.
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 18 mm
- Width: 17.5 mm
- Mass: 10.5 g
The IRT1517 Is Identified for Use With TA1817Z Assembly
Product information links the IRT1517 to shell type assembly and specifically lists the compatible assembled bearing as TA1817Z in the TA_Z and TAM grouping. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groupings.
Which assembly reference is provided for this inner ring?
The supplied data lists TA 1817Z under assembled bearings for TA_Z and TAM. Use this information as a product identification reference rather than assuming compatibility with bearings not listed in the product data.
