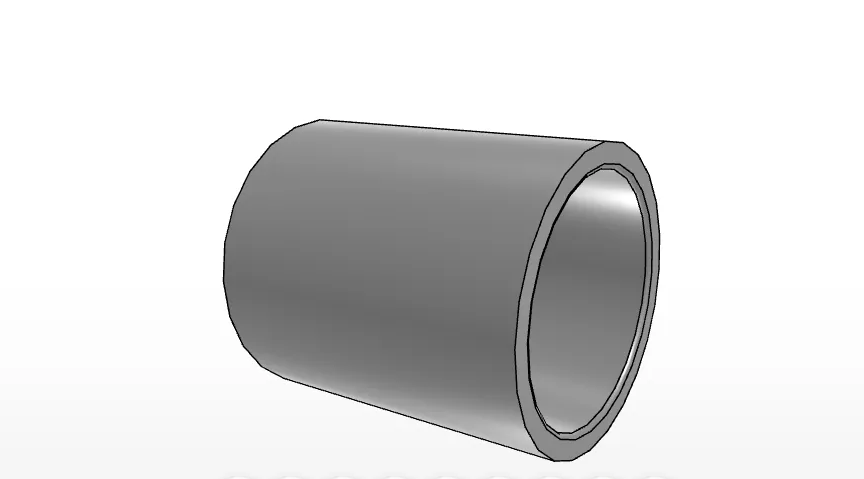

IKO IRT1520
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1820Z
The IKO IRT1520 Is a Metric Inner Ring for Shell-Type Assemblies
The IKO IRT1520 is part of the IKO Inner Rings series and is listed for assembly with the TA1820Z. It has a metric bore and is identified by order number IRT1520.
What bearing type and brand does the IRT1520 belong to?
This component is an inner ring manufactured under the IKO brand. The supplied product data places it in the category path Brand > IKO > Inner Rings.
The IRT1520 Provides the Stated Metric Dimensions and Fit Values
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 18 mm
- Width: 20.5 mm
- rs min.: 0.3 mm
- da min.: 17 mm
- da max.: 17.5 mm
- Mass: 12.3 g
What are the main sizing details for the IRT1520?
The inner ring has a 15 mm inside diameter, an 18 mm outer diameter, and a 20.5 mm width. The stated mass is 12.3 g, and the minimum corner dimension is 0.3 mm.
The IRT1520 Uses High Carbon Steel and Is Listed for TA1820Z Assembly
The supplied product data identifies the material as high carbon steel in the detailed title and as high carbon chrome steel in the structured material field. The stated assembly reference is TA1820Z; no assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL references in the supplied data.
Which assembled bearing is listed for use with the IRT1520?
The product data lists TA 1820Z under assembled bearings for TA_Z, TAM. The fields for TLA_Z, TLAM and YT, YTL show no listed assembled bearing.
