IKO IRT15202
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2020Z, TA202820Z, TLA2020Z, and YT202820
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1520-2
Shaft Diameter
15
mm
Inside Diameter
15
mm
Outer Diameter
20
mm
Width
20.5
mm
rs min.
0.3
mm
da min
17
mm
da max
19.0
mm
Assembled bearings (TA_Z, TAM)
TA 2020Z, TA 202820Z
Assembled bearings (TLA_Z, TLAM)
TLA 2020Z
Assembled bearings (YT, YTL)
YT 202820
Mass
21,5
g

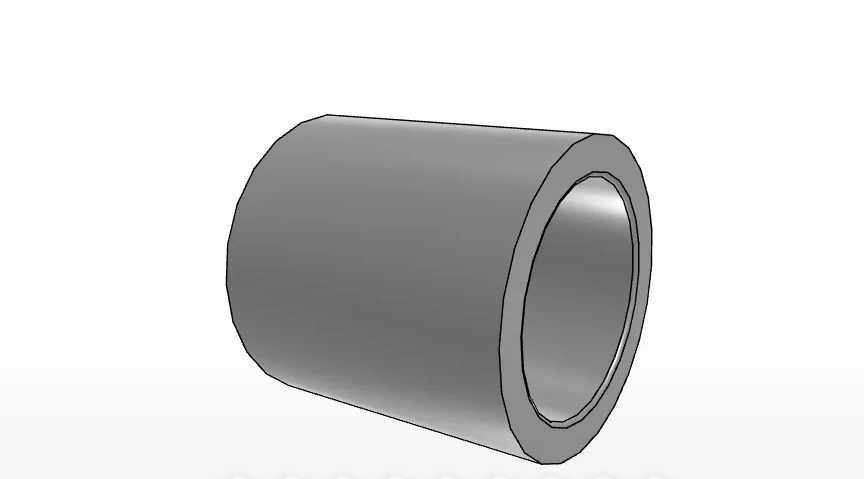

IKO IRT15202 Inner Ring for Metric Shell-Type Assemblies
The IKO IRT15202 is an inner ring in the IKO Inner Rings product series. The supplied data identifies it as a metric inner ring for shell-type use and lists the order number as IRT1520-2.
What are the basic dimensions of the IRT15202?
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outside diameter: 20 mm
- Width: 20.5 mm
- Mass: 21.5 g
High Carbon Chrome Steel Construction
The product data lists the IRT15202 bearing material as high carbon chrome steel. The introductory specification also describes the inner ring as high carbon steel for assembly with the listed shell-type bearing components.

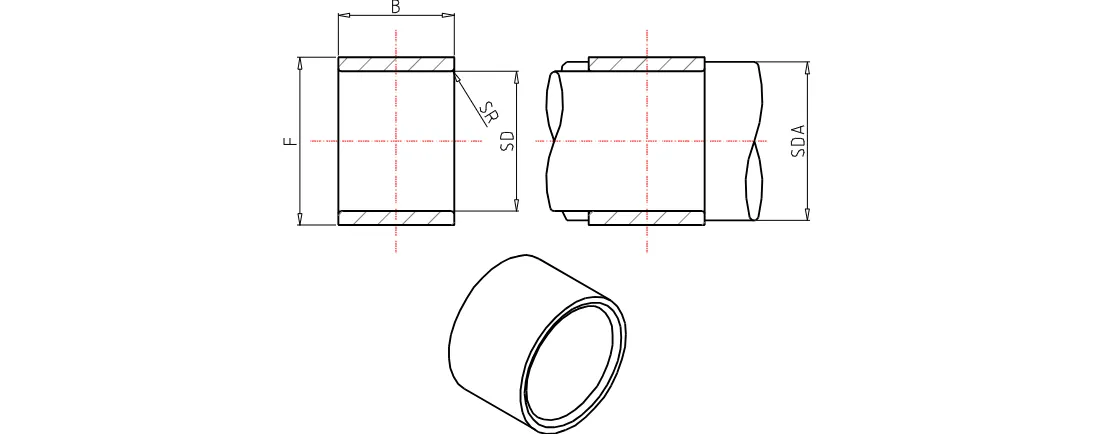

What boundary dimensions and fillet details are supplied?
- rs min.: 0.3 mm
- da min.: 17 mm
- da max.: 19.0 mm
Compatibility With Listed IKO Bearing Numbers
The IRT15202 is specified to assemble with selected TA_Z, TLA_Z, and YT series bearing numbers. Use the listed part numbers to confirm component matching.
Which assembled bearings are listed for the IRT15202?
- TA_Z / TAM: TA 2020Z, TA 202820Z
- TLA_Z / TLAM: TLA 2020Z
- YT / YTL: YT 202820
