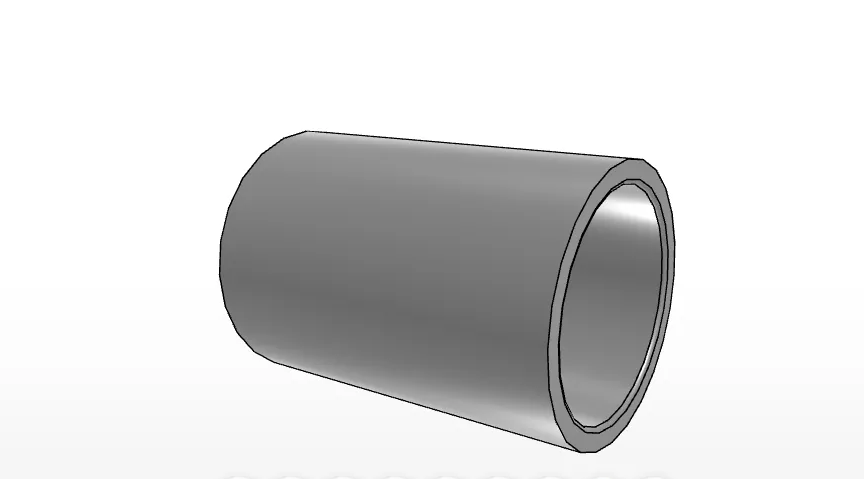

IKO IRT1525
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1825Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1525
Shaft Diameter
15
mm
Inside Diameter
15
mm
Outer Diameter
18
mm
Width
25.5
mm
rs min.
0.3
mm
da min
17
mm
da max
17.5
mm
Assembled bearings (TA_Z, TAM)
TA 1825Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
15,2
g
IKO IRT1525 Inner Ring for Metric Bearing Assembly
What is the IKO IRT1525?
The IKO IRT1525 is an inner ring in the IKO Inner Rings product series. It is listed as a metric inner ring for shell-type use and is specified to assemble with the TA1825Z bearing. The order number is IRT1525.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Category: Brand > IKO > Inner Rings
IRT1525 Dimensions and Product Specifications
What dimensions and material data are provided?
The supplied product data lists the following measurements and material information for the IRT1525 inner ring:
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 18 mm
- Width: 25.5 mm
- rs minimum: 0.3 mm
- da minimum: 17 mm
- da maximum: 17.5 mm
- Material: High carbon chrome steel
- Mass: 15.2 g
IRT1525 Compatibility and Identification Details
Which assembled bearing is identified for this inner ring?
The product information identifies the TA 1825Z under assembled bearings for the TA_Z and TAM group. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groups. These details should be used with the stated 15 mm inside diameter, 18 mm outer diameter, and 25.5 mm width when confirming the required part.
- Confirm the order number: IRT1525
- Verify the mating bearing: TA 1825Z
- Check the supplied dimensions before selection or installation planning
