IKO IRT15302
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2030Z, TLA2030Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1530-2
Shaft Diameter
15
mm
Inside Diameter
15
mm
Outer Diameter
20
mm
Width
30.5
mm
rs min.
0.3
mm
da min
17
mm
da max
19.0
mm
Assembled bearings (TA_Z, TAM)
TA 2030Z
Assembled bearings (TLA_Z, TLAM)
TLA 2030Z
Assembled bearings (YT, YTL)
-
Mass
32
g

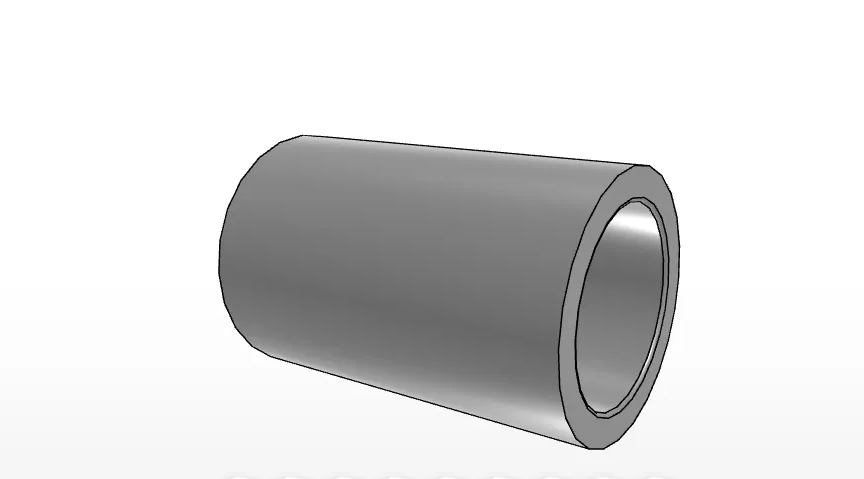

IKO IRT15302 Is a Metric Inner Ring
The IKO IRT15302 belongs to the IKO Inner Rings series and is listed for shell-type use. The product data identifies the order number as IRT1530-2, with a metric bore and a high carbon steel construction description.
What bearing type and material are specified?
- Bearing type: Inner Ring
- Material listing: High Carbon Chrome Steel
- Series: IKO Inner Rings
IRT15302 Provides the Stated Metric Dimensions

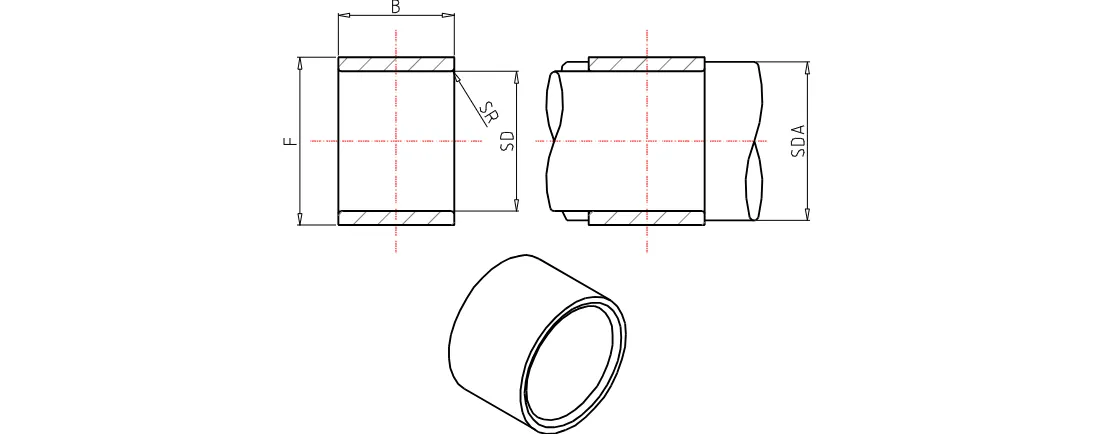

The inner ring has a shaft diameter and inside diameter of 15 mm, an outer diameter of 20 mm, and a width of 30.5 mm. Additional listed values include rs minimum of 0.3 mm, da minimum of 17 mm, da maximum of 19.0 mm, and mass of 32 g.
What dimensions should be reviewed for fitment?
- Shaft / inside diameter: 15 mm
- Outer diameter: 20 mm
- Width: 30.5 mm
- rs min.: 0.3 mm
- da: 17 mm minimum to 19.0 mm maximum
The IRT15302 Is Listed for Specific Assembly References
Product information identifies this inner ring for assembly with TA2030Z and TLA2030Z. Under the assembly lists, TA 2030Z is shown for TA_Z and TAM bearings, while TLA 2030Z is shown for TLA_Z and TLAM bearings. No assembled bearing is listed for YT or YTL references.
Which assembled bearing references are included in the product data?
- TA_Z, TAM: TA 2030Z
- TLA_Z, TLAM: TLA 2030Z
- YT, YTL: Not listed
