IKO IRT17152
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2215Z

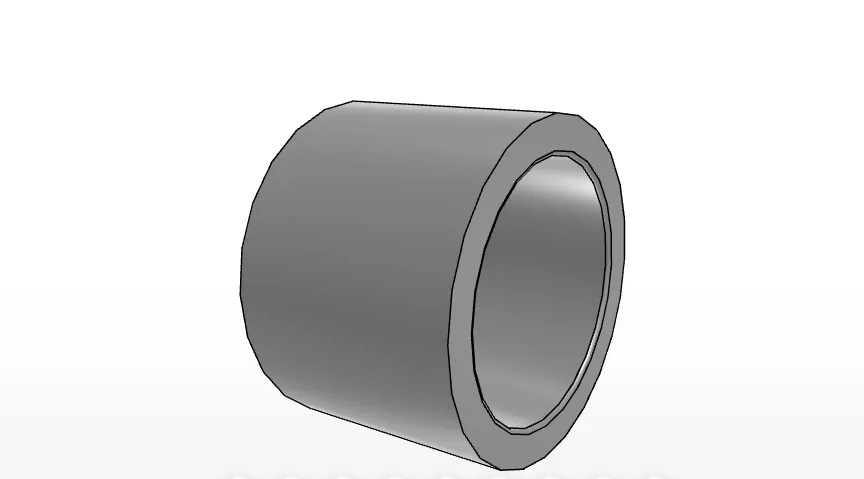

IRT17152 IKO Inner Ring Overview
The IRT17152 is an IKO Inner Ring supplied in metric dimensions and intended for shell-type assembly with TA2215Z. The listed bearing material is high carbon chrome steel, and the stated mass is 18.3 g.
What type of component is the IRT17152?
The product is classified in the IKO Inner Rings category and is described as an inner ring for shell-type use.
IRT17152 Dimensions and Specification
- Order Number: IRT1715-2
- Shaft Diameter: 17 mm
- Inside Diameter: 17 mm
- Outside Diameter: 22 mm
- Width: 15.5 mm
- rs min.: 0.3 mm
- da min.: 19 mm
- da max.: 21.0 mm
What are the measured size details of the IRT17152?
The supplied data identifies a 17 mm bore, 22 mm outer diameter, and 15.5 mm width. Additional edge or related dimension values include rs minimum of 0.3 mm and da range from 19 mm to 21.0 mm.
IRT17152 Assembly Information
The product data lists TA 2215Z under assembled bearings for the TA_Z and TAM groups. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groups.
Which bearing is indicated for assembly with this inner ring?
The stated assembly reference is TA 2215Z, matching the product description that says the IRT17152 is to assemble with TA2215Z.
