IKO IRT17161
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2116Z, YT2116
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1716-1
Shaft Diameter
17
mm
Inside Diameter
17
mm
Outer Diameter
21
mm
Width
16.5
mm
rs min.
0.3
mm
da min
19
mm
da max
20.0
mm
Assembled bearings (TA_Z, TAM)
TA 2116Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
YT 2116
Mass
15,1
g
IRT17161 IKO Inner Ring for Metric Shell-Type Assemblies
The IKO IRT17161 is an inner ring in the IKO Inner Rings series. It is listed for assembly with TA2116Z and YT2116, with the order number recorded as IRT1716-1.
What bearing type and material are specified?
The product is classified as an Inner Ring. The listed bearing material is high carbon chrome steel, also described in the product title as high carbon steel.

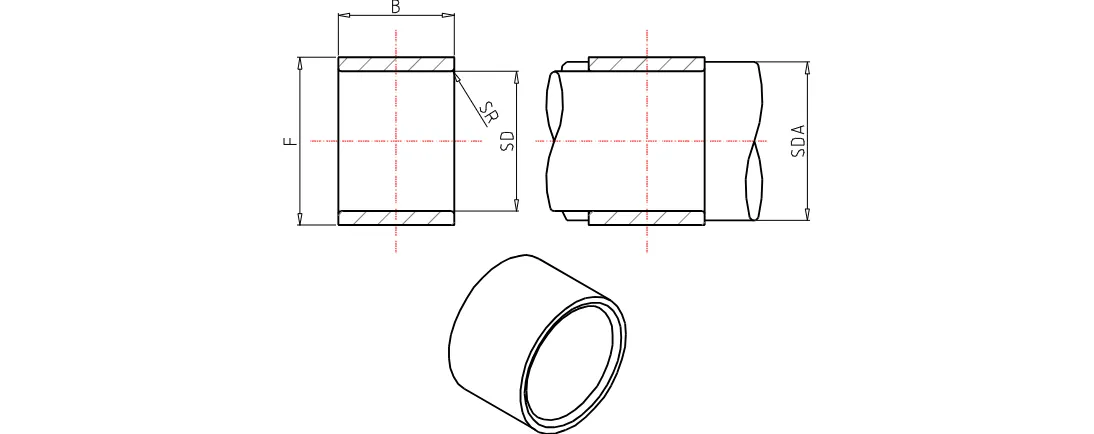

IRT17161 Dimensions and Technical Values
- Shaft diameter: 17 mm
- Inside diameter: 17 mm
- Outer diameter: 21 mm
- Width: 16.5 mm
- rs min.: 0.3 mm
- da min.: 19 mm
- da max.: 20.0 mm
- Mass: 15.1 g
What are the listed assembly references?
The supplied data lists TA 2116Z under assembled bearings for TA_Z and TAM series, and YT 2116 under assembled bearings for YT and YTL series. No reference is listed for TLA_Z or TLAM assemblies.
IRT17161 Product Identification and Category Information
The inner ring is identified under the category path Brand > IKO > Inner Rings. Its product title identifies it as a metric inner ring for shell-type use, intended for assembly with the referenced bearing parts.
How is the IRT17161 identified in the supplied data?
- Model: IRT17161
- Brand: IKO
- Product series: Inner Rings
- Order number: IRT1716-1
