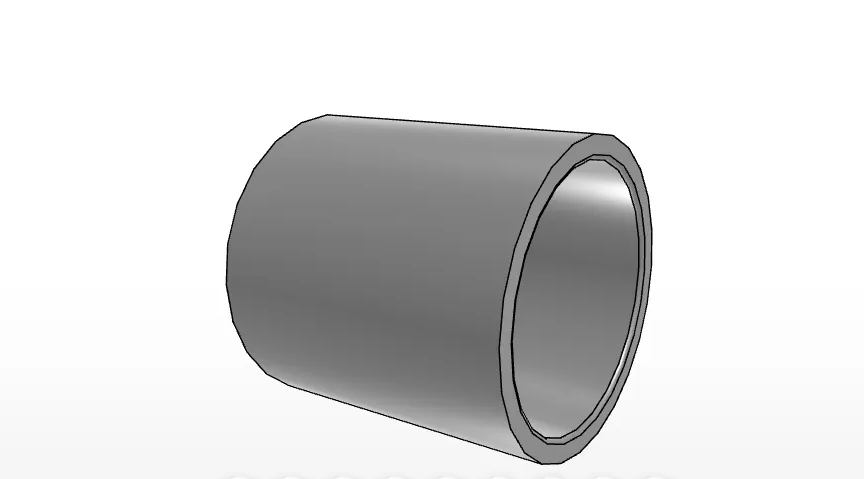

IKO IRT1720
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2020Z, TA202820Z, TLA2020Z, and YT202820
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1720
Shaft Diameter
17
mm
Inside Diameter
17
mm
Outer Diameter
20
mm
Width
20.5
mm
rs min.
0.3
mm
da min
19
mm
da max
19.5
mm
Assembled bearings (TA_Z, TAM)
TA 2020Z, TA 202820Z
Assembled bearings (TLA_Z, TLAM)
TLA 2020Z
Assembled bearings (YT, YTL)
YT 202820
Mass
13,7
g
The IKO IRT1720 Is a Metric Inner Ring
What type of bearing component is the IRT1720?
The IKO IRT1720 is part of the IKO Inner Rings series and belongs to the Brand > IKO > Inner Rings category path. It is designed as a metric inner ring for shell-type assembly use based on the supplied product information.
The IRT1720 Uses High Carbon Chrome Steel Construction
What material is specified for this inner ring?
The product data identifies the bearing material as High Carbon Chrome Steel. The detailed title also describes the part as high carbon steel. The listed mass for the IRT1720 is 13.7 g.
The IRT1720 Matches Specific Shell-Type Bearing Assemblies
Which dimensions and assembly references are provided?
- Shaft diameter: 17 mm
- Inside diameter: 17 mm
- Outer diameter: 20 mm
- Width: 20.5 mm
- rs min.: 0.3 mm
- da min.: 19 mm
- da max.: 19.5 mm
The supplied data lists assembly with TA2020Z, TA202820Z, TLA2020Z, and YT202820. It also groups these references as TA 2020Z and TA 202820Z for TA_Z/TAM assemblies, TLA 2020Z for TLA_Z/TLAM assemblies, and YT 202820 for YT/YTL assemblies.
