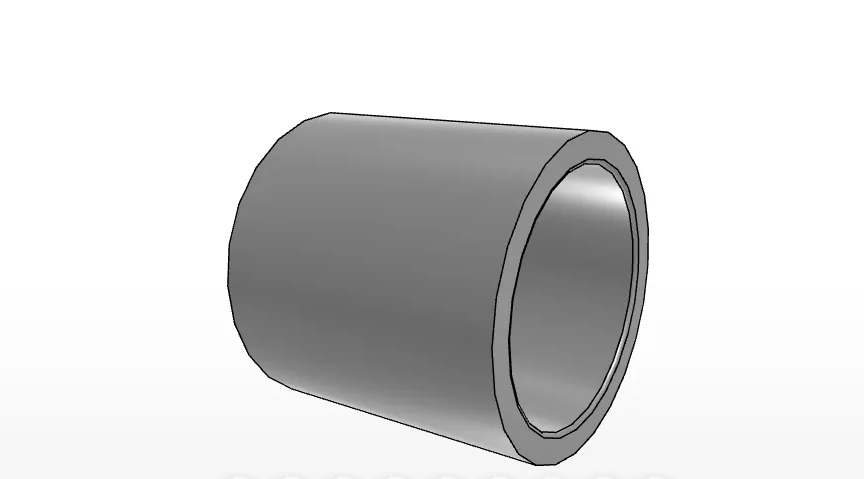

IKO IRT17201
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2120Z, YT2120
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT1720-1
Shaft Diameter
17
mm
Inside Diameter
17
mm
Outer Diameter
21
mm
Width
20.5
mm
rs min.
0.3
mm
da min
19
mm
da max
20.0
mm
Assembled bearings (TA_Z, TAM)
TA 2120Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
YT 2120
Mass
18,8
g
IKO IRT17201 Inner Ring for Metric Assemblies
What type of bearing component is the IRT17201?
The IKO IRT17201 is an inner ring in the IKO Inner Rings product series. It is listed under the category path Brand > IKO > Inner Rings and is identified by order number IRT1720-1.
- Model: IRT17201
- Brand: IKO
- Product series: Inner Rings
- Bearing type: Inner Rings
IRT17201 Dimensions and Material Details
What dimensions and material are specified for this inner ring?
The supplied data lists the IRT1720-1 as a metric inner ring made of high carbon chrome steel. The product introduction also describes the material as high carbon steel and identifies the component as intended for shell-type assembly.
- Shaft diameter: 17 mm
- Inside diameter: 17 mm
- Outer diameter: 21 mm
- Width: 20.5 mm
- rs min.: 0.3 mm
- da min.: 19 mm
- da max.: 20.0 mm
- Mass: 18.8 g
IRT17201 Compatibility Information
Which bearings are listed for assembly with the IRT17201?
The product data lists the IRT17201 inner ring for assembly with TA 2120Z and YT 2120. The TLA_Z or TLAM assembled-bearing field is shown with no listed match.
- TA_Z / TAM assembly: TA 2120Z
- TLA_Z / TLAM assembly: Not listed
- YT / YTL assembly: YT 2120
