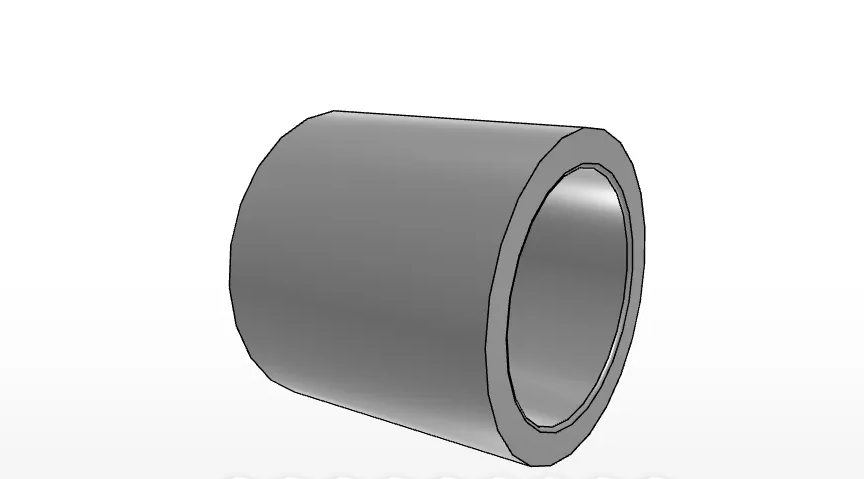

IKO IRT17202
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2220Z, TA223020Z, TLA2220Z, and YT223020
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

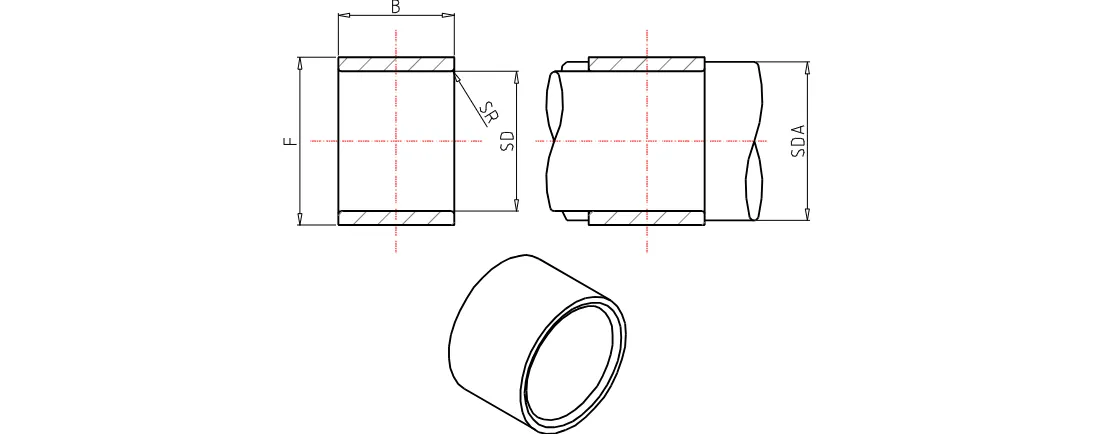

Order Number
IRT1720-2
Shaft Diameter
17
mm
Inside Diameter
17
mm
Outer Diameter
22
mm
Width
20.5
mm
rs min.
0.3
mm
da min
19
mm
da max
21.0
mm
Assembled bearings (TA_Z, TAM)
TA 2220Z, TA 223020Z
Assembled bearings (TLA_Z, TLAM)
TLA 2220Z
Assembled bearings (YT, YTL)
YT 223020
Mass
24
g
