IKO IRT20101
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2510Z, YT2510

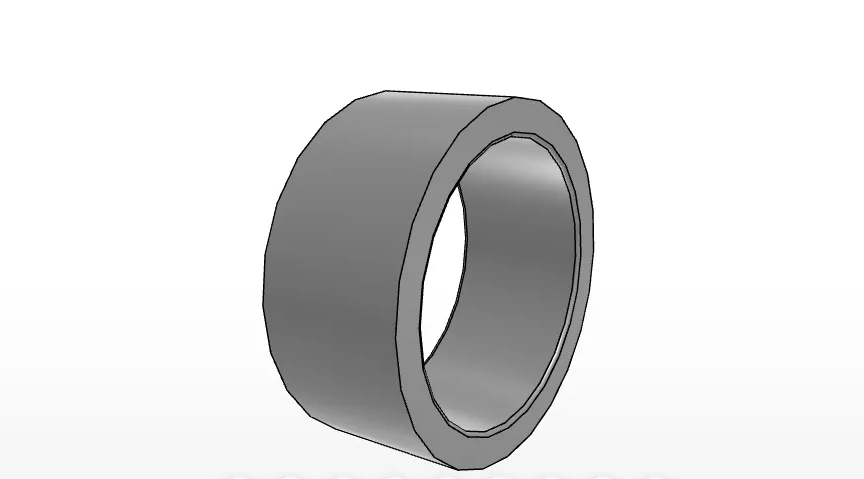

IKO IRT20101 Inner Ring Overview
The IKO IRT20101 is an Inner Rings series component listed under Brand > IKO > Inner Rings. It is a metric inner ring intended for shell-type assembly, with the supplied description identifying compatibility with TA2510Z and YT2510 bearings.
What is the IKO IRT20101?
The IRT20101 is an IKO inner ring with a 20 mm shaft diameter and inside diameter, a 25 mm outside diameter, and a 10.5 mm width. The listed mass is 14,3 g.
Specifications and Dimensional Details
The product data lists the ring material as high carbon chrome steel, while the detailed title describes it as high carbon steel. Its dimensional and edge-related values should be checked against the mating bearing and shaft requirements before selection.
- Inside / shaft diameter: 20 mm
- Outside diameter: 25 mm
- Width: 10.5 mm
- rs min.: 0.3 mm
- da min.: 22 mm
- da max.: 24.0 mm
- Mass: 14,3 g
What dimensions and material are specified for this inner ring?
The IRT20101 measures 20 mm inside diameter, 25 mm outside diameter, and 10.5 mm wide. The list data identifies the bearing material as high carbon chrome steel; the product title uses the general wording high carbon steel.
Assembly Compatibility Information
The supplied data identifies the IRT20101 for assembly with TA 2510Z from the TA_Z / TAM group and YT 2510 from the YT / YTL group. No assembled bearing is listed for the TLA_Z / TLAM group.
- TA_Z, TAM: TA 2510Z
- TLA_Z, TLAM: not listed
- YT, YTL: YT 2510
Which assembled bearings are named in the product data?
The product data names TA 2510Z and YT 2510 as assembled bearings. Use this information only as the supplied compatibility reference and verify the final assembly configuration against the required part numbers.
