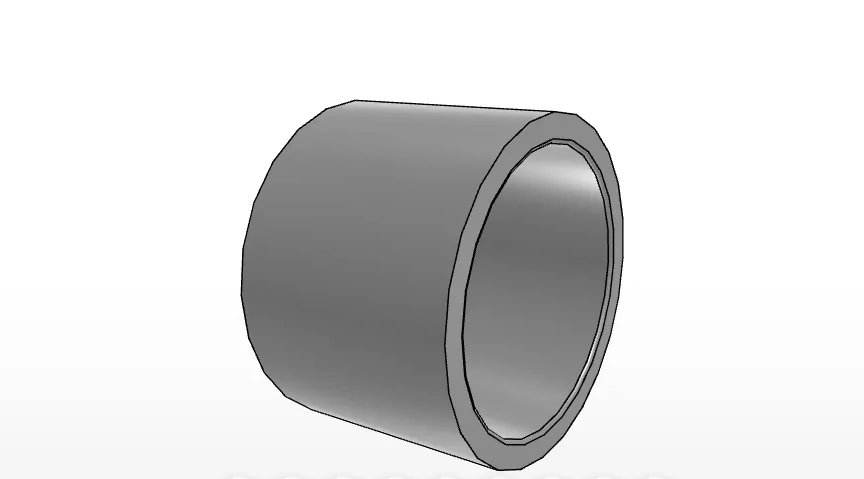

IKO IRT2016
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA243216Z, YT243216
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT2016
Shaft Diameter
20
mm
Inside Diameter
20
mm
Outer Diameter
24
mm
Width
16.5
mm
rs min.
0.3
mm
da min
22
mm
da max
23.0
mm
Assembled bearings (TA_Z, TAM)
TA 243216Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
YT 243216
Mass
17,5
g
IKO IRT2016 Inner Ring Overview
What is the IKO IRT2016?
The IRT2016 is an IKO Inner Rings series metric inner ring listed for shell-type assembly. It is made of high carbon chrome steel and is identified for assembly with TA243216Z and YT243216.
- Brand: IKO
- Model: IRT2016
- Series: Inner Rings
- Bearing type: Inner Rings
- Material: High carbon chrome steel
IRT2016 Dimensions and Product Data
What dimensions are provided for the IRT2016?
The supplied product data lists the following measurements and reference values for the IRT2016 inner ring:
- Shaft diameter: 20 mm
- Inside diameter: 20 mm
- Outer diameter: 24 mm
- Width: 16.5 mm
- rs min.: 0.3 mm
- da min.: 22 mm
- da max.: 23.0 mm
- Mass: 17.5 g
IRT2016 Assembly Identification
Which assembled bearing references are listed?
The product data identifies the IRT2016 for assembly with the following bearing references. Compatibility should be checked against the relevant assembly requirement before selection.
- TA_Z / TAM: TA 243216Z
- TLA_Z / TLAM: no reference listed
- YT / YTL: YT 243216
