IKO IRT2020
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2420Z, TA243220Z, and YT243220
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT2020
Shaft Diameter
20
mm
Inside Diameter
20
mm
Outer Diameter
24
mm
Width
20.5
mm
rs min.
0.3
mm
da min
22
mm
da max
23.0
mm
Assembled bearings (TA_Z, TAM)
TA 2420Z, TA 243220Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
YT 243220
Mass
22
g

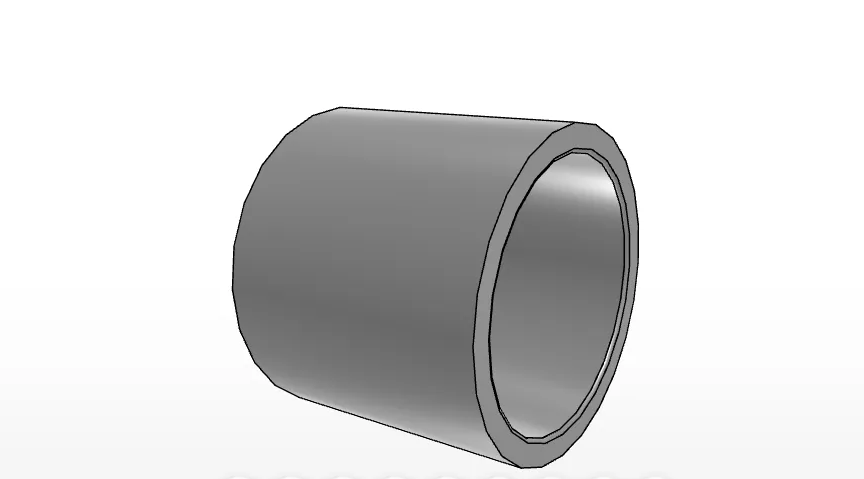

IKO IRT2020 Inner Ring for Metric Bearing Assemblies
What is the IKO IRT2020?
The IKO IRT2020 is an inner ring in the IKO Inner Rings series. It is metric sized and listed for shell-type use, with the order number IRT2020.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Bearing material: High carbon chrome steel
- Mass: 22 g
IRT2020 Dimensions and Technical Data
What dimensions are specified for the IRT2020?
The supplied product data lists the following measurements for the IRT2020:
- Shaft diameter: 20 mm
- Inside diameter: 20 mm
- Outer diameter: 24 mm
- Width: 20.5 mm
- rs min.: 0.3 mm
- da min.: 22 mm
- da max.: 23.0 mm
IRT2020 Compatibility and Material Information
Which assembled bearings are listed for use with the IRT2020?
The product data identifies the IRT2020 as an inner ring to assemble with the following bearing designations:
- TA_Z / TAM: TA 2420Z and TA 243220Z
- YT / YTL: YT 243220
- TLA_Z / TLAM: No assembled bearing is listed
The inner ring is specified as high carbon chrome steel; the product introduction also refers to high carbon steel. Compatibility should be checked against the listed bearing designation and required dimensions.
