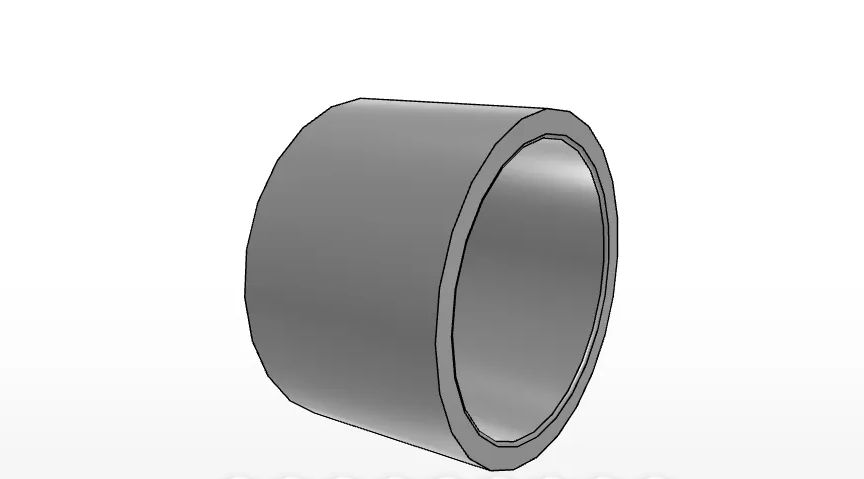

IKO IRT2216
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2616Z, YT2616
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT2216
Shaft Diameter
22
mm
Inside Diameter
22
mm
Outer Diameter
26
mm
Width
16.5
mm
rs min.
0.3
mm
da min
24
mm
da max
25.0
mm
Assembled bearings (TA_Z, TAM)
TA 2616Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
YT 2616
Mass
19,1
g
IKO IRT2216 Inner Ring for Metric Shell-Type Assembly
What is the IKO IRT2216?
The IKO IRT2216 is an inner ring in the IKO Inner Rings product series. It is listed as a metric inner ring for shell-type assembly and is identified by order number IRT2216.
- Brand: IKO
- Product series: Inner Rings
- Bearing type: Inner Ring
- Category path: Brand > IKO > Inner Rings
IKO IRT2216 Dimensions and Material Specification
What dimensions and material are provided for the IRT2216?
The supplied product data lists the following metric dimensions and material information for the IRT2216 inner ring:
- Shaft diameter: 22 mm
- Inside diameter: 22 mm
- Outer diameter: 26 mm
- Width: 16.5 mm
- rs minimum: 0.3 mm
- da minimum: 24 mm
- da maximum: 25.0 mm
- Material: High carbon chrome steel; the title also identifies the material as high carbon steel
- Mass: 19.1 g
IKO IRT2216 Listed Assembly Compatibility
Which assembled bearings are named with the IRT2216?
According to the supplied product data, the IRT2216 is listed for assembly with the following bearings:
- TA_Z / TAM series: TA 2616Z
- TLA_Z / TLAM series: no assembled bearing is listed
- YT / YTL series: YT 2616
The product title also states that the inner ring is to assemble with TA2616Z and YT2616. Compatibility should be checked against the relevant bearing or equipment specification before selection.
