IKO IRT2220
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2620Z, YT2620

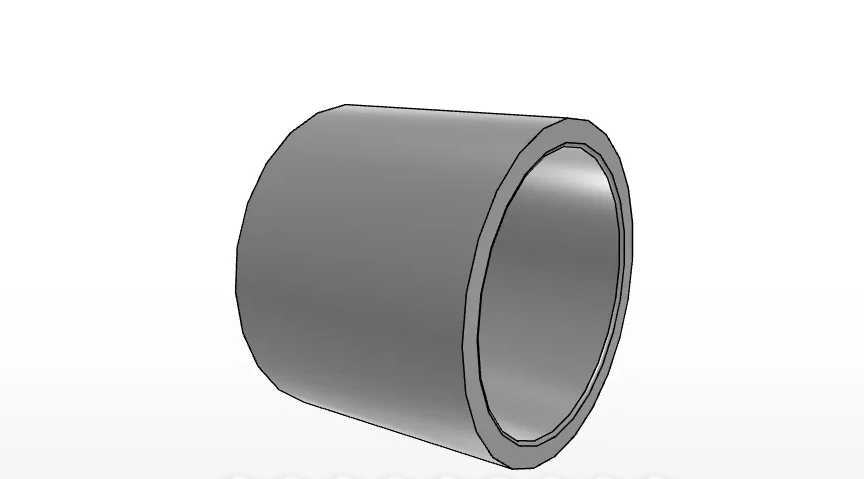

IKO IRT2220 Inner Ring for Metric Shaft Mounting
The IKO IRT2220 is an inner ring within the IKO Inner Rings product series. It has a metric shaft and inside diameter of 22 mm, an outside diameter of 26 mm, and a width of 20.5 mm. The listed mass is 24 g.
What are the basic dimensions of the IRT2220?
The supplied data lists the following dimensions: shaft diameter and inside diameter are both 22 mm, outside diameter is 26 mm, width is 20.5 mm, and rs min. is 0.3 mm. The da range is listed as da min. 24 mm and da max. 25.0 mm.
IKO Inner Ring Material and Series Details
The IRT2220 is classified as an Inner Ring under the IKO brand. The listed bearing material is high carbon chrome steel, while the product introduction also identifies the component as high carbon steel. It is presented as a metric inner ring for shell type assembly.
What material information is provided for this inner ring?
The structured data lists the bearing material as high carbon chrome steel and also describes the inner ring as high carbon steel. No additional material grade or certification information is provided in the supplied data.
IRT2220 Compatibility Information for Assembled Bearings
The IRT2220 is identified for assembly with specified IKO bearing models. The supplied product data lists compatibility with TA 2620Z in the TA_Z and TAM group and YT 2620 in the YT and YTL group. No model is listed for the TLA_Z or TLAM group.
Which assembled bearings are listed for use with the IRT2220?
- TA_Z, TAM: TA 2620Z
- TLA_Z, TLAM: no assembled bearing listed
- YT, YTL: YT 2620
Use the listed bearing designations to check compatibility against the relevant assembly requirements.
