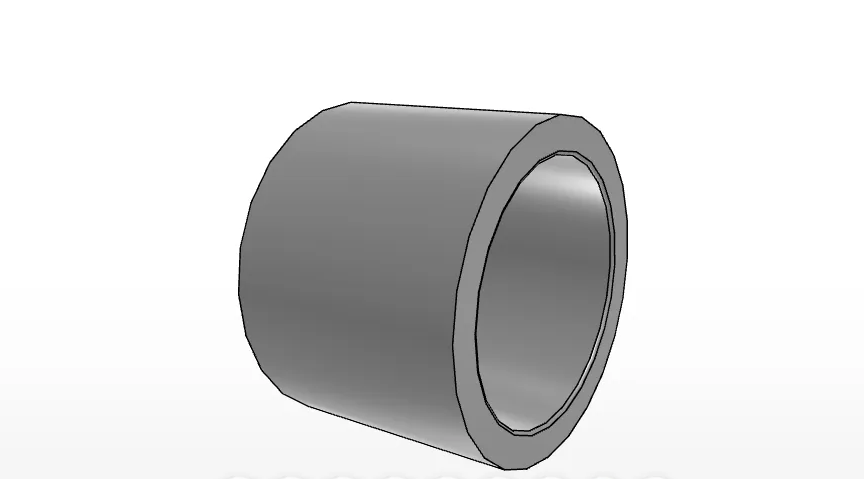

IKO IRT22201
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2820Z, TLA2820Z, and YT2820
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT2220-1
Shaft Diameter
22
mm
Inside Diameter
22
mm
Outer Diameter
28
mm
Width
20.5
mm
rs min.
0.3
mm
da min
24
mm
da max
27.0
mm
Assembled bearings (TA_Z, TAM)
TA 2820Z
Assembled bearings (TLA_Z, TLAM)
TLA 2820Z
Assembled bearings (YT, YTL)
YT 2820
Mass
37
g
IKO IRT22201 Metric Inner Ring
The IKO IRT22201 is listed under the IKO Inner Rings series and is identified by the order number IRT2220-1. It is a metric inner ring designed for shell-type assembly with the bearing models stated in the product data.
What type of component is the IRT22201?
The IRT22201 is an Inner Ring within the IKO Inner Rings product series. The supplied data identifies it as a metric inner ring for shell-type bearing arrangements.
Dimensions and Material Specifications
- Shaft / Inside Diameter: 22 mm
- Outer Diameter: 28 mm
- Width: 20.5 mm
- rs min.: 0.3 mm
- da min.: 24 mm
- da max.: 27.0 mm
- Material: High carbon chrome steel, also described as high carbon steel
- Mass: 37 g
What material is specified for the IRT22201?
The product data lists the bearing material as high carbon chrome steel. The title information also describes the inner ring material as high carbon steel.
Compatible Assembled Bearings
The IRT22201 is specified to assemble with the following listed bearing models:
- TA series: TA 2820Z
- TLA series: TLA 2820Z
- YT series: YT 2820
Which bearings are listed for use with the IRT2220-1 inner ring?
The supplied product data lists TA 2820Z, TLA 2820Z, and YT 2820 as assembled bearings for use with this inner ring.
