IKO IRT22301
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA2830Z

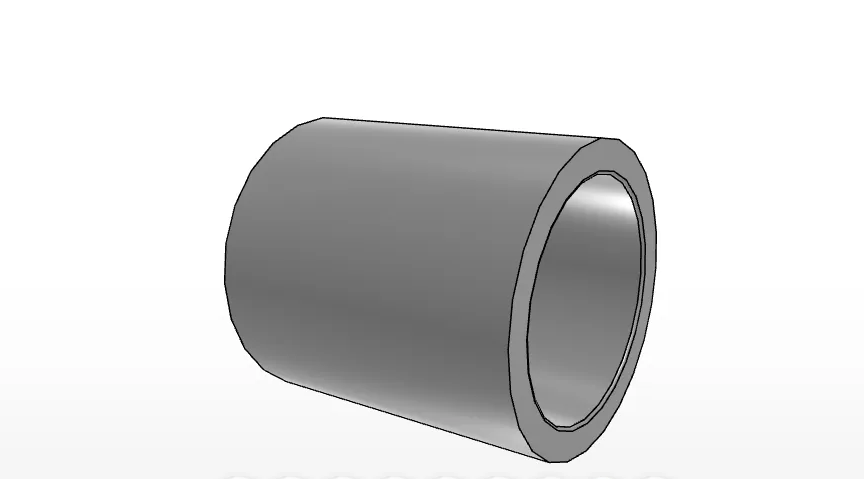

The IKO IRT22301 Is a Metric Inner Ring for Shell Type Assembly
The IKO IRT22301 is part of the IKO Inner Rings series and is listed under Brand > IKO > Inner Rings. Product information identifies it as a metric inner ring for shell type assembly, intended to assemble with the TA2830Z bearing.
What is the IRT22301 designed to assemble with?
The supplied data lists the assembled bearing as TA2830Z under the TA_Z and TAM bearing group. No compatible bearing is listed for the TLA_Z, TLAM, YT, or YTL groups.

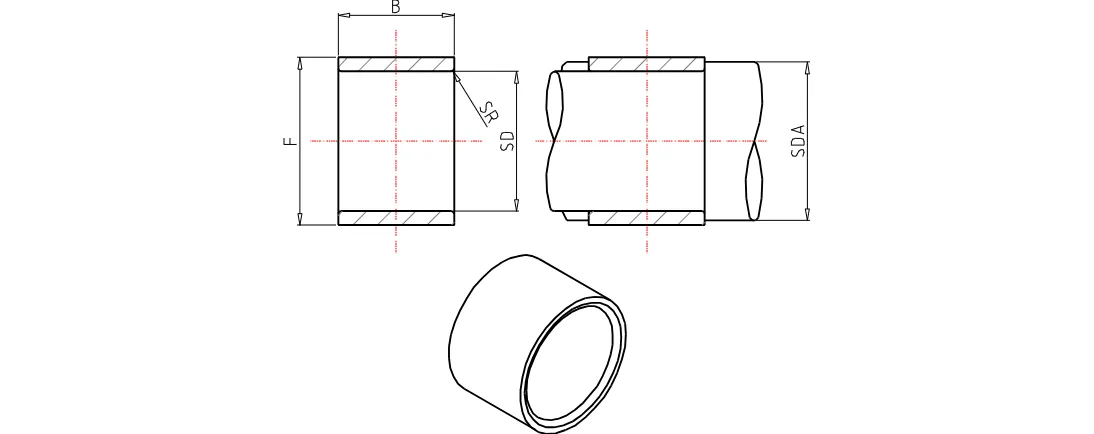

The IRT22301 Provides the Specified Metric Shaft and Ring Dimensions
- Shaft diameter: 22 mm
- Inside diameter: 22 mm
- Outer diameter: 28 mm
- Width: 30.5 mm
- rs minimum: 0.3 mm
- da minimum: 24 mm
- da maximum: 27.0 mm
What dimensions should be reviewed for this inner ring?
Review the 22 mm shaft and inside diameter, 28 mm outer diameter, 30.5 mm width, 0.3 mm minimum rs value, and da range from 24 mm to 27.0 mm against the intended assembly requirements.
The IRT22301 Uses High Carbon Steel and Has a Recorded Mass of 55.5 g
The product data identifies the bearing material as high carbon chrome steel, while the descriptive product information refers to high carbon steel. The listed mass is 55.5 g, shown in the source data as 55,5 g.
What identifying and material details are supplied?
The order number is IRT2230-1, the model is IRT22301, and the bearing type is Inner Rings. The supplied material designation is high carbon chrome steel, with no additional material or certification details provided.
