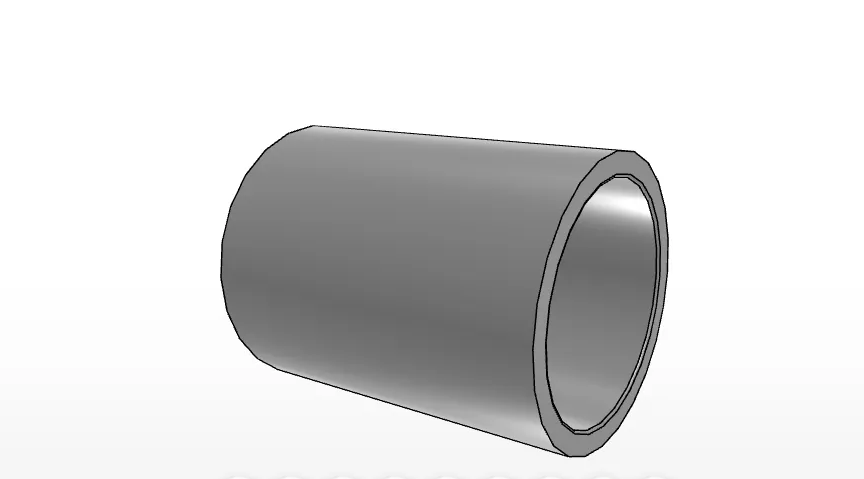

IKO IRT25381
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TLAW3038Z
IKO IRT25381 Metric Inner Ring Introduction
The IKO IRT25381 is listed in the Inner Rings product series under the brand category IKO > Inner Rings. The order number is shown as IRT2538-1, and the product is identified as a metric inner ring for shell-type assembly with TLAW3038Z.
What are the basic model and brand details?
This inner ring carries model IRT25381, is manufactured by IKO, and belongs to the Inner Rings series. The supplied data identifies its order number as IRT2538-1.
IKO IRT25381 Dimensions and Material Specification
The supplied product data lists the following specifications for the IRT25381 inner ring:
- Shaft diameter: 25 mm
- Inside diameter: 25 mm
- Outer diameter: 30 mm
- Width: 38.5 mm
- rs min.: 0.3 mm
- da min.: 27 mm
- da max.: 29.0 mm
- Mass: 64 g
The list data identifies the bearing material as high carbon chrome steel, while the detail description refers to high carbon steel.
What material and dimensions are provided for this inner ring?
The product is specified as an inner ring made from high carbon chrome steel in the list data. Its measured dimensions are 25 mm inside diameter, 30 mm outer diameter, and 38.5 mm width, with a listed mass of 64 g.
IKO IRT25381 Assembly Compatibility Information
The product detail identifies the IRT25381 inner ring as an item to assemble with TLAW3038Z. The compatibility table lists the assembled-bearing group TLA_Z, TLAM with the designation TLAW 3038Z. No assembled bearings are listed for the TA_Z, TAM, or YT, YTL groups in the supplied data.
Which assembled bearing is identified with the IRT25381?
The supplied data identifies TLAW3038Z, also written as TLAW 3038Z, as the assembled bearing associated with the IRT25381 inner ring. Other listed assembly groups show no associated bearing designation.
