IKO IRT3012
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA3512Z, TLA3512Z

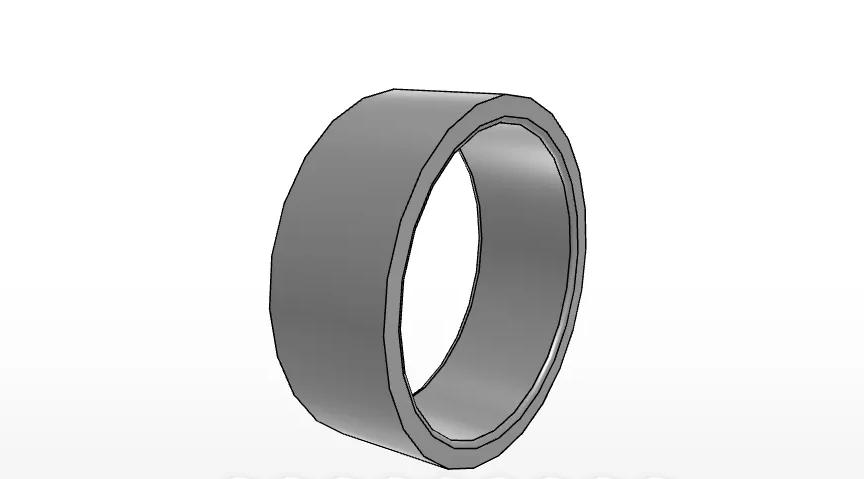

IKO IRT3012 Inner Ring for Metric Shell-Type Use
The IKO IRT3012 is an inner ring in the IKO Inner Rings series. It is listed for shell-type use and is made from high carbon chrome steel according to the supplied product data.
What are the basic identifying details?
The order number is IRT3012, the brand is IKO, and the bearing type is Inner Rings. The category path is Brand > IKO > Inner Rings.
IKO IRT3012 Dimensions and Technical Data
The supplied dimensional data lists a shaft diameter and inside diameter of 30 mm, an outer diameter of 35 mm, and a width of 12.5 mm.
- rs min.: 0.6 mm
- da min.:34 mm
- da max.:34.5 mm
- Mass:24.5 g
What are the stated dimensions?
The IRT3012 has a 30 mm inside diameter, 35 mm outer diameter, 12.5 mm width, 0.6 mm minimum fillet dimension, and a listed mass of 24.5 g.
IKO IRT3012 Assembly Compatibility Information
The product data identifies the IRT3012 as an inner ring intended to assemble with listed shell-type bearing parts. Compatibility should be checked against the required assembly designation before selection.
- TA_Z / TAM:TA 3512Z
- TLA_Z / TLAM:TLA 3512Z
- YT / YTL:not listed
Which related bearings are named in the product data?
The supplied data names TA 3512Z and TLA 3512Z as assembled bearings. No YT or YTL bearing is listed for this inner ring.
