IKO IRT3025
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA3525Z

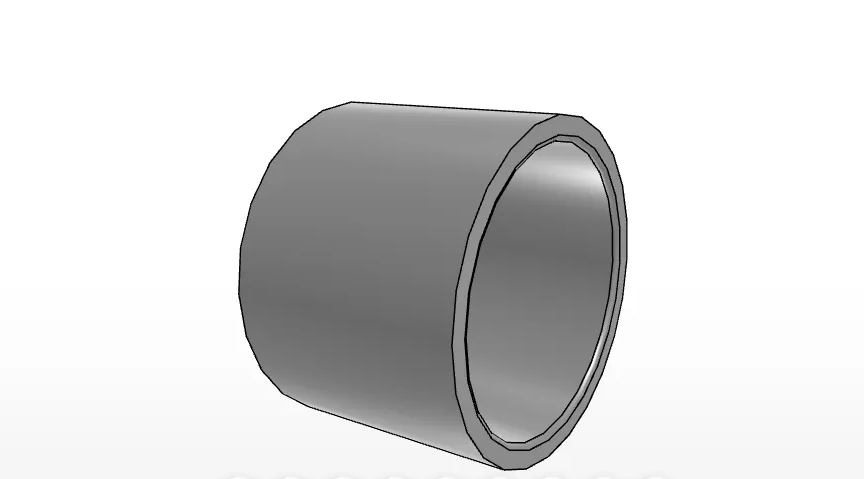

IKO IRT3025 Inner Ring for Metric Shell-Type Assembly
The IKO IRT3025 is an inner ring in the Inner Rings product series. It is designed for shell-type use and is listed for assembly with TA3525Z. The product data identifies the ring material as high carbon steel, with the bearing material field specifying high carbon chrome steel.
What are the basic identification details for IRT3025?
- Order number: IRT3025
- Brand: IKO
- Bearing type: Inner Ring
- Series: Inner Rings
- Category: Brand > IKO > Inner Rings

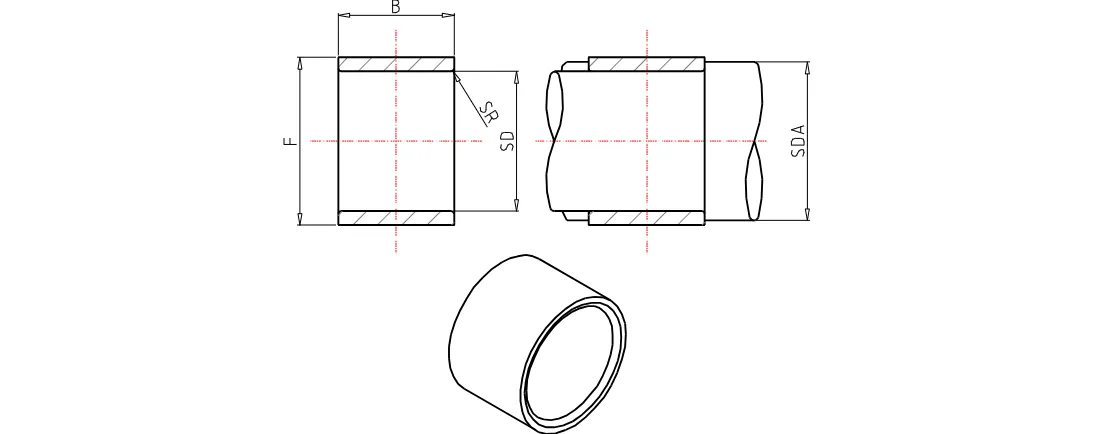

IKO IRT3025 Dimensions and Measured Specifications
The IRT3025 is a metric inner ring with a 30 mm shaft diameter and inside diameter. Its outer diameter is 35 mm, width is 25.5 mm, and minimum fillet dimension is 0.6 mm. The listed related shoulder dimensions include a minimum da of 34 mm and maximum da of 34.5 mm.
What dimensions are provided for the IRT3025?
- Shaft diameter: 30 mm
- Inside diameter: 30 mm
- Outer diameter: 35 mm
- Width: 25.5 mm
- rs minimum: 0.6 mm
- da minimum: 34 mm
- da maximum: 34.5 mm
IKO IRT3025 Compatibility and Product Data
The supplied data identifies the IRT3025 for assembly with TA 3525Z within the TA_Z and TAM assembled bearing group. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groups. The reported mass of the inner ring is 50 g.
Which assembly information and mass are listed for this ring?
The product data lists TA 3525Z under assembled bearings for the TA_Z and TAM group. The TLA_Z, TLAM, YT, and YTL compatibility fields show no listed assembly. The IKO IRT3025 has a listed mass of 50 g.
