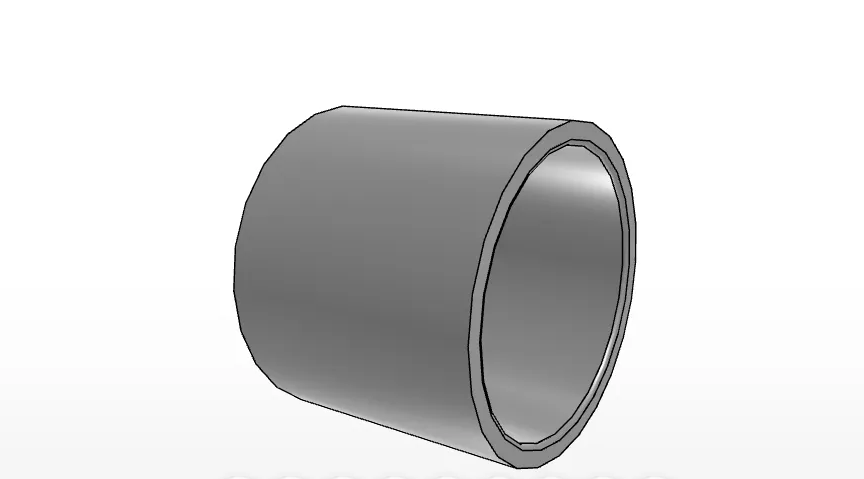

IKO IRT3230
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA3730Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT3230
Shaft Diameter
32
mm
Inside Diameter
32
mm
Outer Diameter
37
mm
Width
30.5
mm
rs min.
0.6
mm
da min
36
mm
da max
36.5
mm
Assembled bearings (TA_Z, TAM)
TA 3730Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
63,5
g
The IKO IRT3230 Is a Metric Inner Ring
What type of bearing component is the IRT3230?
The IKO IRT3230 belongs to the IKO Inner Rings product series and is listed under Brand > IKO > Inner Rings. The product data identifies it as an inner ring designed for shell type use and for assembly with TA3730Z.
- Model: IRT3230
- Brand: IKO
- Bearing type: Inner Rings
- Configuration: Metric, for shell type
IRT3230 Dimensions and Assembly Data Are Specified
What dimensions and related values are provided for the IRT3230 inner ring?
The supplied data lists the following dimensional and assembly values. These values should be checked against the mating component requirements before selection.
- Shaft diameter: 32 mm
- Inside diameter: 32 mm
- Outer diameter: 37 mm
- Width: 30.5 mm
- rs min.: 0.6 mm
- da min: 36 mm
- da max: 36.5 mm
- Assembled bearing listed for TA_Z, TAM: TA 3730Z
The IRT3230 Uses High Carbon Steel Construction Data
What material and mass information is available for the IRT3230?
The product data identifies the bearing material as high carbon chrome steel; the descriptive title also refers to high carbon steel. The listed mass is 63.5 g, shown in the supplied data as 63,5 g. No compatibility is listed for TLA_Z, TLAM, YT, or YTL assemblies in the provided data.
