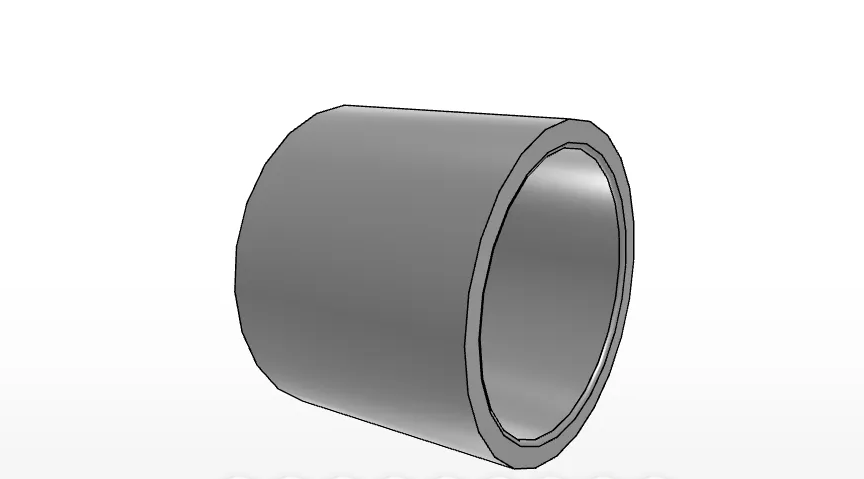

IKO IRT32301
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA3830Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT3230-1
Shaft Diameter
32
mm
Inside Diameter
32
mm
Outer Diameter
38
mm
Width
30.5
mm
rs min.
0.6
mm
da min
36
mm
da max
37.0
mm
Assembled bearings (TA_Z, TAM)
TA 3830Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
77,5
g
IKO IRT32301 Inner Ring Provides a Metric Inner Ring Option
What is the IKO IRT32301?
The IKO IRT32301 is an inner ring in the IKO Inner Rings series. It is listed for shell-type use and is designed to assemble with the TA3830Z bearing. The order number is shown as IRT3230-1.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Category: Brand > IKO > Inner Rings
IRT32301 Features the Supplied Metric Dimensions and Material
What dimensions and material are listed for this inner ring?
The product data lists a shaft diameter and inside diameter of 32 mm, an outer diameter of 38 mm, and a width of 30.5 mm. The stated material is high carbon chrome steel, also described in the product introduction as high carbon steel.
- Shaft diameter: 32 mm
- Inside diameter: 32 mm
- Outer diameter: 38 mm
- Width: 30.5 mm
- rs min.: 0.6 mm
- da min.: 36 mm
- da max.: 37.0 mm
IRT32301 Is Identified for Assembly with TA3830Z
What assembly and mass information is provided?
The supplied data identifies the IRT32301 for assembly with TA 3830Z under the TA_Z and TAM assembled-bearing grouping. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groupings. Its listed mass is 77.5 g, shown in the source data as 77,5 g.
- Assembled bearing listed: TA 3830Z
- TLA_Z / TLAM: not listed
- YT / YTL: not listed
- Mass: 77.5 g
